Unofficial Core/Photon protoboard

Social Project Share
1

Hi all!

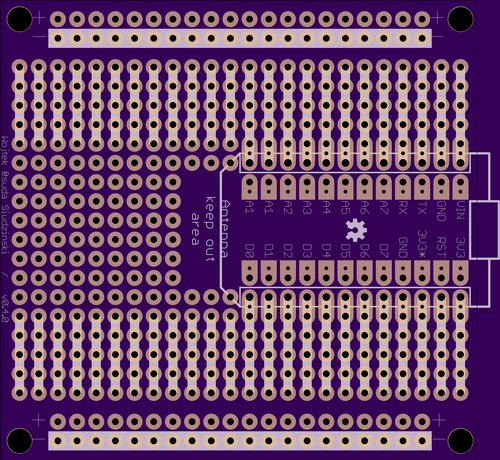

Some time ago when moving a Photon project from a breadboard to universal PCB I came with a idea for custom protoboard which should make it easier. Main goals were to have same/similar pinout to a breadboard and to use double entry SMD headers to make the profile super thin. Here are the results (will post photos tomorrow):

1244×1200

If anyone wants one you can order it on OSHPark or use the source Eagle/Gerber files to make it yourself.

Let me know what do you think about it, if there’s something you would change or add :slight_smile:

2 Likes
2

I would respect the keepout area under the antenna.

Here’s the documentation.

1 Like
3

Thx Andy! I wasn’t aware of this.

Also I was wondering if whole Core/Photon should be moved to far right as currently USB plug would cover part of it anyway.

1 Like
4

All of the above, and perhaps make it suitable for the electron as well?

1 Like
5

Promised photos:

1024×683

683×1024

1024×683

I’ll address the issues above later today :slight_smile:

1 Like
6

Here’s modified version:

Any notes? :slight_smile:

Unfortunately there is no Electron Eagle element at the moment so Electron version will have to wait a bit.
