Need EE help on Photon project

Hardware
1

I need help on miniaturizing a prototype circuit I have built to automate a small appliance.

I also need help in finding this 5 pin connector but I can’t see how to paste in the image, so I guess I need help pasting in the image. I uploaded the image as my Profile picture and background. I suppose the first task I would ask an EE is to help me identify this connector.

2

You can simply drag the image into the text editor window from your explorer folder if you have it save on your computer.

You can also provide a web link to a image of the 5 pin connector.

3

Additionally to @RWB’s tip you can use the upload icon in the tool bar of the editor window.

4

Does anyone know where I can find this connector?

5

Hi @shorspool

That looks like an Amp connector with pins on 0.156 inch centers. Try allectronics.com.

1 Like
6

Thank you! I found this: MTA-156. Now I just have to figure out who to order from and how to order it

7

Check out Digikey.com or Mouser.com

8

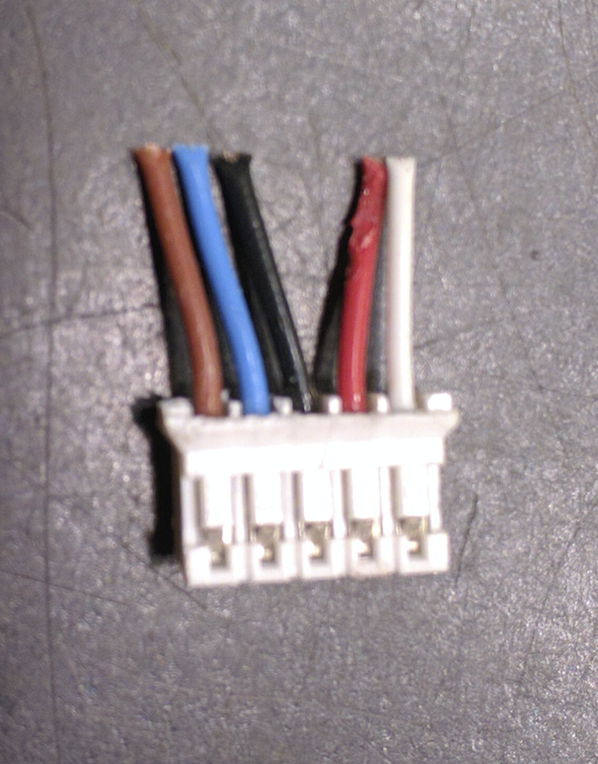

5pin-connector.png598×764 631 KB

This does look like the MTA-156 but it’s polarized. Here’s the other side:

mta-156-side2.png872×758 904 KB

White is hot (5V) and red is ground
