MQTT-TLS with Google IoT Core

Firmware Libraries
1

now I checked Photon could connect to the Google IoT Core with MQTT-TLS.
I hope this library is helpful for IoT Photon developers.

here is sample source code.

#include "MQTT-TLS.h"

void callback(char* topic, byte* payload, unsigned int length);

// use GlobalSign Root CA - R2
#define GOOGLE_IOT_CORE_CA_PEM                                              \
"-----BEGIN CERTIFICATE----- \r\n"                                      \
"MIIDujCCAqKgAwIBAgILBAAAAAABD4Ym5g0wDQYJKoZIhvcNAQEFBQAwTDEgMB4G\r\n"  \
"A1UECxMXR2xvYmFsU2lnbiBSb290IENBIC0gUjIxEzARBgNVBAoTCkdsb2JhbFNp\r\n"  \
"Z24xEzARBgNVBAMTCkdsb2JhbFNpZ24wHhcNMDYxMjE1MDgwMDAwWhcNMjExMjE1\r\n"  \
"MDgwMDAwWjBMMSAwHgYDVQQLExdHbG9iYWxTaWduIFJvb3QgQ0EgLSBSMjETMBEG\r\n"  \
"A1UEChMKR2xvYmFsU2lnbjETMBEGA1UEAxMKR2xvYmFsU2lnbjCCASIwDQYJKoZI\r\n"  \
"hvcNAQEBBQADggEPADCCAQoCggEBAKbPJA6+Lm8omUVCxKs+IVSbC9N/hHD6ErPL\r\n"  \
"v4dfxn+G07IwXNb9rfF73OX4YJYJkhD10FPe+3t+c4isUoh7SqbKSaZeqKeMWhG8\r\n"  \
"eoLrvozps6yWJQeXSpkqBy+0Hne/ig+1AnwblrjFuTosvNYSuetZfeLQBoZfXklq\r\n"  \
"tTleiDTsvHgMCJiEbKjNS7SgfQx5TfC4LcshytVsW33hoCmEofnTlEnLJGKRILzd\r\n"  \
"C9XZzPnqJworc5HGnRusyMvo4KD0L5CLTfuwNhv2GXqF4G3yYROIXJ/gkwpRl4pa\r\n"  \
"zq+r1feqCapgvdzZX99yqWATXgAByUr6P6TqBwMhAo6CygPCm48CAwEAAaOBnDCB\r\n"  \
"mTAOBgNVHQ8BAf8EBAMCAQYwDwYDVR0TAQH/BAUwAwEB/zAdBgNVHQ4EFgQUm+IH\r\n"  \
"V2ccHsBqBt5ZtJot39wZhi4wNgYDVR0fBC8wLTAroCmgJ4YlaHR0cDovL2NybC5n\r\n"  \
"bG9iYWxzaWduLm5ldC9yb290LXIyLmNybDAfBgNVHSMEGDAWgBSb4gdXZxwewGoG\r\n"  \
"3lm0mi3f3BmGLjANBgkqhkiG9w0BAQUFAAOCAQEAmYFThxxol4aR7OBKuEQLq4Gs\r\n"  \
"J0/WwbgcQ3izDJr86iw8bmEbTUsp9Z8FHSbBuOmDAGJFtqkIk7mpM0sYmsL4h4hO\r\n"  \
"291xNBrBVNpGP+DTKqttVCL1OmLNIG+6KYnX3ZHu01yiPqFbQfXf5WRDLenVOavS\r\n"  \
"ot+3i9DAgBkcRcAtjOj4LaR0VknFBbVPFd5uRHg5h6h+u/N5GJG79G+dwfCMNYxd\r\n"  \
"AfvDbbnvRG15RjF+Cv6pgsH/76tuIMRQyV+dTZsXjAzlAcmgQWpzU/qlULRuJQ/7\r\n"  \
"TBj0/VLZjmmx6BEP3ojY+x1J96relc8geMJgEtslQIxq/H5COEBkEveegeGTLg==\r\n"  \
"-----END CERTIFICATE----- "

const char googleIotCoreCaPem[] = GOOGLE_IOT_CORE_CA_PEM;
MQTT client("mqtt.googleapis.com", 8883, callback, 768);  // set max packet size to 768 for JWT password.

// recieve message
void callback(char* topic, byte* payload, unsigned int length) {
    char p[length + 1];
    memcpy(p, payload, length);
    p[length] = NULL;
    String message(p);

    if (message.equals("RED"))
        RGB.color(255, 0, 0);
    else if (message.equals("GREEN"))
        RGB.color(0, 255, 0);
    else if (message.equals("BLUE"))
        RGB.color(0, 0, 255);
    else
        RGB.color(255, 255, 255);
    delay(1000);
}

#define ONE_DAY_MILLIS (24 * 60 * 60 * 1000)
unsigned long lastSync = millis();
void setup() {
    if (millis() - lastSync > ONE_DAY_MILLIS) {
        Particle.syncTime();
        lastSync = millis();
    }
    RGB.control(true);

    // connect to Google IoT Core
    client.enableTls(googleIotCoreCaPem, sizeof(googleIotCoreCaPem));
    client.connect("projects/{your project-id}/locations/{cloud-region}/registries/{registry-id}/devices/{device-id}",
                   "unused",
                   "your JWT text data");

    // publish/subscribe to Google IoT Core
    if (client.isConnected()) {
        Serial.println("client connected");
        client.publish("/devices/device1/events/function", "from particle phton publish message");
        client.subscribe("/devices/device1/config");
    }
}

void loop() {
    if (client.isConnected())
        client.loop();
    delay(1000);
}

Regards,
Hirotaka

8 Likes
2

Hi Hirotaka,

Thank you for your wonderful guide. Could I ask you to help with the JWT data section, please? So far I understand that JWT data is encrypted by the private key and used to handshake with the Iot Cloud, but I don’t understand how the string is generated.

Kind Regards
Finn

3

Hi, if you could use golang, check this site(makejwt command).

4

Hello,
Thank you for your work, I really appreciate. I am planning to test your library, but I cannot generate JWT token for Google IoT Core. I cannot find any suitable library which will be using mbedtls. I want to generate JWT one per 24 hours on device, any suggestion? What is important I am trying to use this lib on Argon and Xenon devices.

5

I also had the same problem and what I ended up doing was creating an App Engine endpoint and calling that to generate the JWT to send back to the device.

I should note I did this with an Adafruit huzzah esp32 not any particle devices

6

hi, @Toyokomi @tyczj

here is sample golang make JWT token source code.

package main

import (
  "flag"
  "io/ioutil"
  "log"
  "time"

  jwt "github.com/dgrijalva/jwt-go"
)

var (
  deviceID = flag.String("device", "", "Cloud IoT Core Device ID")
  projectID  = flag.String("project", "", "GCP Project ID")
  registryID = flag.String("registry", "", "Cloud IoT Registry ID (short form)")
  region     = flag.String("region", "", "GCP Region")
  certsCA    = flag.String("ca_certs", "", "Download https://pki.google.com/roots.pem")
  privateKey = flag.String("private_key", "", "Path to private key file")
)

func main() {
  flag.Parse()

  token := jwt.New(jwt.SigningMethodRS256)
  token.Claims = jwt.StandardClaims{
    Audience:  *projectID,
    IssuedAt:  time.Now().Unix(),
    ExpiresAt: time.Now().Add(24 * time.Hour).Unix(),
  }

  keyBytes, _ := ioutil.ReadFile(*privateKey)
  key, _ := jwt.ParseRSAPrivateKeyFromPEM(keyBytes)
  tokenString, _ := token.SignedString(key)

  log.Printf("[main] jwt token: %v\n", tokenString)
}

And here is sample result.

openssl req -x509 -newkey rsa:2048 -keyout rsa_private.pem -nodes  -out rsa_cert.pem -subj "/CN=unused"
go run makejwt.go  --device=[your device id] --project=[your project id] --registry=[your registory] --region=[your region] --ca_certs=./roots.pem --private_key=rsa_private.pem
2019/01/07 13:20:35 [main] jwt token: eyJhbGciOiJS....

Photon sample source code is same on this topic my source code.

7

@Toyokomi @hirotakaster I’ve attempted to modify the mbedtls library to create a JWT token locally on an electron based on a process I found here:
https://www.esp32.com/viewtopic.php?t=6828&p=35458

A reference code sample was supplied in that article and I’ll link it here: https://github.com/nkolban/esp32-snippets/blob/master/cloud/GCP/JWT/main.cpp

It is possible to port ‘createGCPJWT()’ for the electron and to modify the mbedtls library by removing calls to fopen and printf etc. so that it to compiles, flashes, and begins execution but presently I’m running out of memory prior to delivering the JWT. (This may be due to the sample using MBEDTLS_MD_SHA256 in addition to x509 now… could x509 be used to sign the token Hirotaka??? This is all very new to me.)

My next step would be to instantiate the JWT creator with mbedtls support, build and save the token, then release the JWT creator and try to recover enough memory resources to allow myself to continue on to instantiate an MQTT object (and run my app code) after I generate the relatively small token. @hirotakaster Hirotaka, considering you have more experience modifying the library, I wonder if you might have more luck than me. If you’re interested in digging in I can share with you the very rough mbedtls modifications I’ve made so far. I’ll likely put this aside myself as it’s not a high priority at the moment.

Without token generation at the device I’m planning to do something similar to @tyczj and generate the token daily in the cloud, then share it via particle.publish/subscribe prior to invoking MQTT. That’s a big workaround to coordinate though.

8

Hello,
Thank you for your reply, I have tried to import code from
https://github.com/nkolban/esp32-snippets/blob/master/cloud/GCP/JWT/main.cpp.
I have no problems to compiles files from MQTT-TLS lib, but there is a problem with using mbedtls_entropy_init(&entropy); which is causing error. Commenting this function allow me to compile user part. There is a linker problem, compile output:

...
/usr/local/gcc-arm-embedded/bin/../lib/gcc/arm-none-eabi/5.3.1/../../../../arm-none-eabi/lib/armv7e-m/fpu/libg_nano.a(lib_a-lseekr.o): In function `_lseek_r':
lseekr.c:(.text._lseek_r+0x10): undefined reference to `_lseek'
/usr/local/gcc-arm-embedded/bin/../lib/gcc/arm-none-eabi/5.3.1/../../../../arm-none-eabi/lib/armv7e-m/fpu/libg_nano.a(lib_a-readr.o): In function `_read_r':
readr.c:(.text._read_r+0x10): undefined reference to `_read'
collect2: error: ld returned 1 exit status

I think this could problem with porting mbedTLS to Argon,Xenon, especially entropy.

9

@ian.c
Thank you for your help. If you okay, could you please send me a pull request or issue about your modifications to my MQTT-TLS/TlsTcpClient github.

How to get the JWT token from server or create on the devices(with mbedTLS) have security and mbedTLS library size problem.

Now particle firmware include mbedTLS for DTLS that could not use for TLS(tcp).
Then I port mbedTLS(tcp) with MQTT simple implementation, unfortunately if application use MQTT-TLS it have two mbedTLS on the device as a result(this is waste of size). MQTT-TLS library have a JWT token create method like a makeJWT(…) is one of good idea, but MQTT library including JWT token create function is a little bit strange. I think it would be better to implement MQTT and JWT as separate library.(but…become waste of size…)

Download JWT token from server with trusted secure pub/sub or something method is good idea. As you write, generate JWT token everyday on the server takes a server cost.

anyway I will implements generate JWT token function on MQTT-TLS library with mbedtls, then I check the library total size.

1 Like
10

I think we can do something like separate JWT library.

11

The _lseek and _read etc. errors are due to a few (many) of the mbedtls library files referencing functions like printf and fopen, etc. I believe. Commenting out mbedtls_entropy_init must have taken most of them out of your compile. I had many more, and ended up modifying a bunch of library files to get rid of the linker errors.

If you want to leave the entropy function in, look for references to MBEDTLS_FS_IO. It’s is not defined in the config.h but the code within the #ifdef tags causes the linker problem. I deleted a bunch of instances of it to get the code to compile. I’ll see if I can get the modifications to Hirotaka’s git. (Edit: With separate JWT library files based on the reference)

1 Like
12

I actually just found this github example from Google that shows how to connect to IoT core on and arduino and it might be useful here?

It appears they have a library that we can integrate, I have yet to try it but it looks promising

Also here is a blog post about it

13

I asked on forum about using internal mbedTLS lib, this will maybe solve out problems related to proper configuration for that lib and porting properly for each platform.

14

@hirotakaster Pull request is sent now. I’m still running out of memory before the JWT is built though, so I sent over as much of the background as I can too. I have to move on to some other work for the next little while, but I’m really interested to know if this works out down the line.

1 Like
15

I managed to generate JWT with NULL entropy… And I succeed with connecting to Google Iot Core, but after sending one message, I stuck into problem with error 128, from wiring. I don’t know where could be problem.

16

@Toyokomi Good step forward! I haven’t tried null entropy, though I thought about attempting a weak form and hoped the ‘mbedtls_platform_set_nv_seed’ function would get us some entropy while still fitting in memory, maybe not huh?

Did you upload an update to Hirotaka’s git? Do you have some detailed info on the error? Where exactly is it being thrown?

2 Likes
17

Hello,
By now I give up working with MQTT via TLS, I will try integration with Google and PubSub service. I will come back to you when I start again fighting with mbedTLS.

18
Here is my memo: Connect to Google IoT Core with particle photon with MQTT-TLS(0.2.20).

(IoT Core example parameters)
registory name : particle-registory
device id = photon1
region : us-central1
key : photon.key.pem
crt : photon.crt.pem
topic name : atest-pub
subscription : atest-sub

1.setup glcoud setting.
2. make certificate

openssl req -x509 -nodes -newkey rsa:2048 -keyout photon.key.pem -out photon.crt.pem -days 365 -subj “/CN=unused”

3. download from Google IoT RootCA for JWT token.

wget https://pki.google.com/roots.pem

4. craete topic

gcloud pubsub topics create atest-pub --project=[PROJECT_ID]
gcloud pubsub subscriptions create atest-sub --topic=atest-pub

5. make IoT registry&device

gcloud iot registries create particle-registory --region=us-central1–event-notification-config=topic=atest-pub
gcloud iot devices create --public-key=path=photon.crt.pem,type=rsa-x509-pem --region=us-central1 --registry=particle-registory photon1

6. make jwt token(golang source code)
package main

import (
  "flag"
  "io/ioutil"
  "log"
  "time"

  jwt "github.com/dgrijalva/jwt-go"
)

var (
  deviceID = flag.String("device", "", "Cloud IoT Core Device ID")
  projectID  = flag.String("project", "", "GCP Project ID")
  registryID = flag.String("registry", "", "Cloud IoT Registry ID (short form)")
  region     = flag.String("region", "", "GCP Region")
  certsCA    = flag.String("ca_certs", "", "Download https://pki.google.com/roots.pem")
  privateKey = flag.String("private_key", "", "Path to private key file")
)

func main() {
  flag.Parse()

  token := jwt.New(jwt.SigningMethodRS256)
  token.Claims = jwt.StandardClaims{
    Audience:  *projectID,
    IssuedAt:  time.Now().Unix(),
    ExpiresAt: time.Now().Add(24 * time.Hour).Unix(),
  }

  keyBytes, _ := ioutil.ReadFile(*privateKey)
  key, _ := jwt.ParseRSAPrivateKeyFromPEM(keyBytes)
  tokenString, _ := token.SignedString(key)

  log.Printf("[main] jwt token: %v\n", tokenString)
}
6.1. get token strings.

go run makejwt.go --device=photon1 --project=[PROJECT_ID] --registry=particle-registory --region=us-central1 --ca_certs=./roots.pem --private_key=photon.key.pem

7. simple source code for Photon.

#include "MQTT-TLS.h"

void callback(char* topic, byte* payload, unsigned int length);

// use GlobalSign Root CA - R2
#define GOOGLE_IOT_CORE_CA_PEM                                          \
"-----BEGIN CERTIFICATE----- \r\n"                                      \
"MIIDujCCAqKgAwIBAgILBAAAAAABD4Ym5g0wDQYJKoZIhvcNAQEFBQAwTDEgMB4G\r\n"  \
"A1UECxMXR2xvYmFsU2lnbiBSb290IENBIC0gUjIxEzARBgNVBAoTCkdsb2JhbFNp\r\n"  \
"Z24xEzARBgNVBAMTCkdsb2JhbFNpZ24wHhcNMDYxMjE1MDgwMDAwWhcNMjExMjE1\r\n"  \
"MDgwMDAwWjBMMSAwHgYDVQQLExdHbG9iYWxTaWduIFJvb3QgQ0EgLSBSMjETMBEG\r\n"  \
"A1UEChMKR2xvYmFsU2lnbjETMBEGA1UEAxMKR2xvYmFsU2lnbjCCASIwDQYJKoZI\r\n"  \
"hvcNAQEBBQADggEPADCCAQoCggEBAKbPJA6+Lm8omUVCxKs+IVSbC9N/hHD6ErPL\r\n"  \
"v4dfxn+G07IwXNb9rfF73OX4YJYJkhD10FPe+3t+c4isUoh7SqbKSaZeqKeMWhG8\r\n"  \
"eoLrvozps6yWJQeXSpkqBy+0Hne/ig+1AnwblrjFuTosvNYSuetZfeLQBoZfXklq\r\n"  \
"tTleiDTsvHgMCJiEbKjNS7SgfQx5TfC4LcshytVsW33hoCmEofnTlEnLJGKRILzd\r\n"  \
"C9XZzPnqJworc5HGnRusyMvo4KD0L5CLTfuwNhv2GXqF4G3yYROIXJ/gkwpRl4pa\r\n"  \
"zq+r1feqCapgvdzZX99yqWATXgAByUr6P6TqBwMhAo6CygPCm48CAwEAAaOBnDCB\r\n"  \
"mTAOBgNVHQ8BAf8EBAMCAQYwDwYDVR0TAQH/BAUwAwEB/zAdBgNVHQ4EFgQUm+IH\r\n"  \
"V2ccHsBqBt5ZtJot39wZhi4wNgYDVR0fBC8wLTAroCmgJ4YlaHR0cDovL2NybC5n\r\n"  \
"bG9iYWxzaWduLm5ldC9yb290LXIyLmNybDAfBgNVHSMEGDAWgBSb4gdXZxwewGoG\r\n"  \
"3lm0mi3f3BmGLjANBgkqhkiG9w0BAQUFAAOCAQEAmYFThxxol4aR7OBKuEQLq4Gs\r\n"  \
"J0/WwbgcQ3izDJr86iw8bmEbTUsp9Z8FHSbBuOmDAGJFtqkIk7mpM0sYmsL4h4hO\r\n"  \
"291xNBrBVNpGP+DTKqttVCL1OmLNIG+6KYnX3ZHu01yiPqFbQfXf5WRDLenVOavS\r\n"  \
"ot+3i9DAgBkcRcAtjOj4LaR0VknFBbVPFd5uRHg5h6h+u/N5GJG79G+dwfCMNYxd\r\n"  \
"AfvDbbnvRG15RjF+Cv6pgsH/76tuIMRQyV+dTZsXjAzlAcmgQWpzU/qlULRuJQ/7\r\n"  \
"TBj0/VLZjmmx6BEP3ojY+x1J96relc8geMJgEtslQIxq/H5COEBkEveegeGTLg==\r\n"  \
"-----END CERTIFICATE----- "

const char googleIotCoreCaPem[] = GOOGLE_IOT_CORE_CA_PEM;
MQTT client("mqtt.googleapis.com", 8883, callback, 768);  // set max packet size to 768 for JWT password.

// recieve message
void callback(char* topic, byte* payload, unsigned int length) {
    char p[length + 1];
    memcpy(p, payload, length);
    p[length] = NULL;
    String message(p);
    Serial.print("topic:"); Serial.println(topic);
    Serial.print("message:"); Serial.println(message);

    if (message.equals("RED"))
        RGB.color(255, 0, 0);
    else if (message.equals("GREEN"))
        RGB.color(0, 255, 0);
    else if (message.equals("BLUE"))
        RGB.color(0, 0, 255);
    else
        RGB.color(255, 255, 255);
    delay(1000);
}

#define ONE_DAY_MILLIS (24 * 60 * 60 * 1000)
unsigned long lastSync = millis();
void setup() {
    if (millis() - lastSync > ONE_DAY_MILLIS) {
        Particle.syncTime();
        lastSync = millis();
    }
    RGB.control(true);

    // connect to Google IoT Core
    client.enableTls(googleIotCoreCaPem, sizeof(googleIotCoreCaPem));
    client.connect("projects/[PROJECT_ID]/locations/us-central1/registries/particle-registory/devices/photon1",
                   "unused",
                   "[JWT Token from golang sample source code]");

    // publish/subscribe to Google IoT Core
    if (client.isConnected()) {
        Serial.println("client connected");
        client.publish("/devices/photon1/events/atest-pub", "from particle phton publish message");
        client.subscribe("/devices/photon1/config");
    }
}

void loop() {
    if (client.isConnected())
        client.loop();
    delay(10000);
}
8. test

gcloud pubsub subscriptions pull --auto-ack atest-sub
gcloud iot devices configs update --config-data=RED --device=photon1 --registry=particle-registory --region=us-central1

2 Likes
19

Are you able to test your library on Argon device? By now I have problems with compiling it for Argon devices.

20

of course, my Argon with MQTT-TLS(0.2.20) sample code compile&works well now.

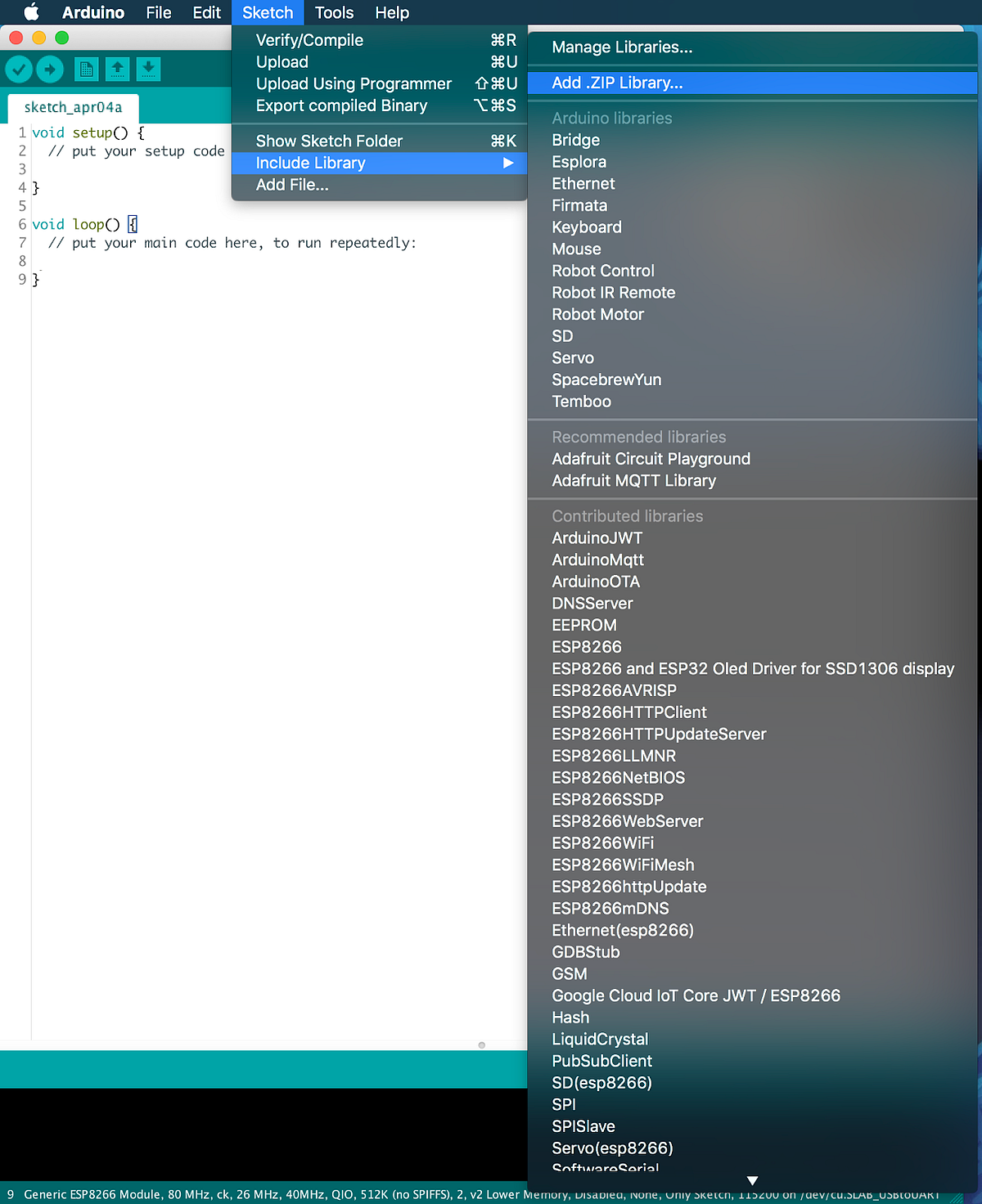

pic1
pic11172×803 83.3 KB
