hi Spark Fans!
Did anyone try to connect a regular 8x8 matrix led panel with the Spark?
It would be supercool to utilise this component as well, but so far i was not able to do it
I found codes on the net for regular arduino boards but all are using some external library/file.

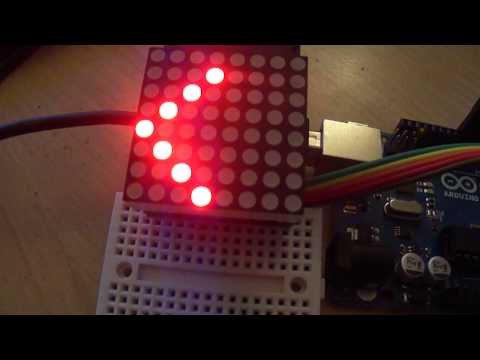

This is what i’m talking about:
another tutorial:
Anyone tried the same and reached anything on this field? Don’t know where to start actually, a lil help would be beneficial
Regards,
Noten
Currently with online build, you have to copy contents of library’s .h and .cpp files before setup() and loop(). Unfortunately it most likely won’t compile as is and you have to make adjustments based on errors the compiler reports.
I own a 8x8 with backpack that has pins VCC, GND, DIN, CS and CLK. I have this code that scrolls uptime in seconds. It is based on LedControl and has currently few my own functions to make scrolling.:
Pinmap:
VCC - 3V3
GND - GND
DIN - A0
CS - A1
CLK - A2
/*
* LedControl.h - A library for controling Leds with a MAX7219/MAX7221

* Copyright (c) 2007 Eberhard Fahle
*
* Permission is hereby granted, free of charge, to any person
* obtaining a copy of this software and associated documentation
* files (the "Software"), to deal in the Software without
* restriction, including without limitation the rights to use,
* copy, modify, merge, publish, distribute, sublicense, and/or sell
* copies of the Software, and to permit persons to whom the
* Software is furnished to do so, subject to the following
* conditions:
*
* This permission notice shall be included in all copies or
* substantial portions of the Software.
*
* THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
* EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES
* OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
* NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT
* HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
* WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
* FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR
* OTHER DEALINGS IN THE SOFTWARE.
*/
/*
* Segments to be switched on for characters and digits on
* 7-Segment Displays
*/
const static byte charTable[128] = {
126,48,109,121,51,91,95,112,
127,123,119,31,13,61,79,71,
0,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0,
0,0,0,0,128,1,128,0,
126,48,109,121,51,91,95,112,
127,123,0,0,0,0,0,0,
0,119,31,13,61,79,71,0,
55,0,0,0,14,0,0,0,
103,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,8,
0,119,31,13,61,79,71,0,
55,0,0,0,14,0,0,0,
103,0,0,0,0,0,0,0,
0,0,0,0,0,0,0,0
};
//8x8 font
const static byte cp437_font [256] [8] = {
{ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // 0x00
{ 0x7E, 0x81, 0x95, 0xB1, 0xB1, 0x95, 0x81, 0x7E }, // 0x01
{ 0x7E, 0xFF, 0xEB, 0xCF, 0xCF, 0xEB, 0xFF, 0x7E }, // 0x02
{ 0x0E, 0x1F, 0x3F, 0x7E, 0x3F, 0x1F, 0x0E, 0x00 }, // 0x03
{ 0x08, 0x1C, 0x3E, 0x7F, 0x3E, 0x1C, 0x08, 0x00 }, // 0x04
{ 0x18, 0xBA, 0xFF, 0xFF, 0xFF, 0xBA, 0x18, 0x00 }, // 0x05
{ 0x10, 0xB8, 0xFC, 0xFF, 0xFC, 0xB8, 0x10, 0x00 }, // 0x06
{ 0x00, 0x00, 0x18, 0x3C, 0x3C, 0x18, 0x00, 0x00 }, // 0x07
{ 0xFF, 0xFF, 0xE7, 0xC3, 0xC3, 0xE7, 0xFF, 0xFF }, // 0x08
{ 0x00, 0x3C, 0x66, 0x42, 0x42, 0x66, 0x3C, 0x00 }, // 0x09
{ 0xFF, 0xC3, 0x99, 0xBD, 0xBD, 0x99, 0xC3, 0xFF }, // 0x0A
{ 0x70, 0xF8, 0x88, 0x88, 0xFD, 0x7F, 0x07, 0x0F }, // 0x0B
{ 0x00, 0x4E, 0x5F, 0xF1, 0xF1, 0x5F, 0x4E, 0x00 }, // 0x0C
{ 0xC0, 0xE0, 0xFF, 0x7F, 0x05, 0x05, 0x07, 0x07 }, // 0x0D
{ 0xC0, 0xFF, 0x7F, 0x05, 0x05, 0x65, 0x7F, 0x3F }, // 0x0E
{ 0x99, 0x5A, 0x3C, 0xE7, 0xE7, 0x3C, 0x5A, 0x99 }, // 0x0F
{ 0x7F, 0x3E, 0x3E, 0x1C, 0x1C, 0x08, 0x08, 0x00 }, // 0x10
{ 0x08, 0x08, 0x1C, 0x1C, 0x3E, 0x3E, 0x7F, 0x00 }, // 0x11
{ 0x00, 0x24, 0x66, 0xFF, 0xFF, 0x66, 0x24, 0x00 }, // 0x12
{ 0x00, 0x5F, 0x5F, 0x00, 0x00, 0x5F, 0x5F, 0x00 }, // 0x13
{ 0x06, 0x0F, 0x09, 0x7F, 0x7F, 0x01, 0x7F, 0x7F }, // 0x14
{ 0x40, 0xDA, 0xBF, 0xA5, 0xFD, 0x59, 0x03, 0x02 }, // 0x15
{ 0x00, 0x70, 0x70, 0x70, 0x70, 0x70, 0x70, 0x00 }, // 0x16
{ 0x80, 0x94, 0xB6, 0xFF, 0xFF, 0xB6, 0x94, 0x80 }, // 0x17
{ 0x00, 0x04, 0x06, 0x7F, 0x7F, 0x06, 0x04, 0x00 }, // 0x18
{ 0x00, 0x10, 0x30, 0x7F, 0x7F, 0x30, 0x10, 0x00 }, // 0x19
{ 0x08, 0x08, 0x08, 0x2A, 0x3E, 0x1C, 0x08, 0x00 }, // 0x1A
{ 0x08, 0x1C, 0x3E, 0x2A, 0x08, 0x08, 0x08, 0x00 }, // 0x1B
{ 0x3C, 0x3C, 0x20, 0x20, 0x20, 0x20, 0x20, 0x00 }, // 0x1C
{ 0x08, 0x1C, 0x3E, 0x08, 0x08, 0x3E, 0x1C, 0x08 }, // 0x1D
{ 0x30, 0x38, 0x3C, 0x3E, 0x3E, 0x3C, 0x38, 0x30 }, // 0x1E
{ 0x06, 0x0E, 0x1E, 0x3E, 0x3E, 0x1E, 0x0E, 0x06 }, // 0x1F
{ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // ' '
{ 0x00, 0x06, 0x5F, 0x5F, 0x06, 0x00, 0x00, 0x00 }, // '!'
{ 0x00, 0x07, 0x07, 0x00, 0x07, 0x07, 0x00, 0x00 }, // '"'
{ 0x14, 0x7F, 0x7F, 0x14, 0x7F, 0x7F, 0x14, 0x00 }, // '#'
{ 0x24, 0x2E, 0x6B, 0x6B, 0x3A, 0x12, 0x00, 0x00 }, // '$'
{ 0x46, 0x66, 0x30, 0x18, 0x0C, 0x66, 0x62, 0x00 }, // '%'
{ 0x30, 0x7A, 0x4F, 0x5D, 0x37, 0x7A, 0x48, 0x00 }, // '&'
{ 0x04, 0x07, 0x03, 0x00, 0x00, 0x00, 0x00, 0x00 }, // '''
{ 0x00, 0x1C, 0x3E, 0x63, 0x41, 0x00, 0x00, 0x00 }, // '('
{ 0x00, 0x41, 0x63, 0x3E, 0x1C, 0x00, 0x00, 0x00 }, // ')'
{ 0x08, 0x2A, 0x3E, 0x1C, 0x1C, 0x3E, 0x2A, 0x08 }, // '*'
{ 0x08, 0x08, 0x3E, 0x3E, 0x08, 0x08, 0x00, 0x00 }, // '+'
{ 0x00, 0x80, 0xE0, 0x60, 0x00, 0x00, 0x00, 0x00 }, // ','
{ 0x08, 0x08, 0x08, 0x08, 0x08, 0x08, 0x00, 0x00 }, // '-'
{ 0x00, 0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00 }, // '.'
{ 0x60, 0x30, 0x18, 0x0C, 0x06, 0x03, 0x01, 0x00 }, // '/'
{ 0x3E, 0x7F, 0x71, 0x59, 0x4D, 0x7F, 0x3E, 0x00 }, // '0'
{ 0x40, 0x42, 0x7F, 0x7F, 0x40, 0x40, 0x00, 0x00 }, // '1'
{ 0x62, 0x73, 0x59, 0x49, 0x6F, 0x66, 0x00, 0x00 }, // '2'
{ 0x22, 0x63, 0x49, 0x49, 0x7F, 0x36, 0x00, 0x00 }, // '3'
{ 0x18, 0x1C, 0x16, 0x53, 0x7F, 0x7F, 0x50, 0x00 }, // '4'
{ 0x27, 0x67, 0x45, 0x45, 0x7D, 0x39, 0x00, 0x00 }, // '5'
{ 0x3C, 0x7E, 0x4B, 0x49, 0x79, 0x30, 0x00, 0x00 }, // '6'
{ 0x03, 0x03, 0x71, 0x79, 0x0F, 0x07, 0x00, 0x00 }, // '7'
{ 0x36, 0x7F, 0x49, 0x49, 0x7F, 0x36, 0x00, 0x00 }, // '8'
{ 0x06, 0x4F, 0x49, 0x69, 0x3F, 0x1E, 0x00, 0x00 }, // '9'
{ 0x00, 0x00, 0x66, 0x66, 0x00, 0x00, 0x00, 0x00 }, // ':'
{ 0x00, 0x80, 0xE6, 0x66, 0x00, 0x00, 0x00, 0x00 }, // ';'
{ 0x08, 0x1C, 0x36, 0x63, 0x41, 0x00, 0x00, 0x00 }, // '<'
{ 0x24, 0x24, 0x24, 0x24, 0x24, 0x24, 0x00, 0x00 }, // '='
{ 0x00, 0x41, 0x63, 0x36, 0x1C, 0x08, 0x00, 0x00 }, // '>'
{ 0x02, 0x03, 0x51, 0x59, 0x0F, 0x06, 0x00, 0x00 }, // '?'
{ 0x3E, 0x7F, 0x41, 0x5D, 0x5D, 0x1F, 0x1E, 0x00 }, // '@'
{ 0x7C, 0x7E, 0x13, 0x13, 0x7E, 0x7C, 0x00, 0x00 }, // 'A'
{ 0x41, 0x7F, 0x7F, 0x49, 0x49, 0x7F, 0x36, 0x00 }, // 'B'
{ 0x1C, 0x3E, 0x63, 0x41, 0x41, 0x63, 0x22, 0x00 }, // 'C'
{ 0x41, 0x7F, 0x7F, 0x41, 0x63, 0x3E, 0x1C, 0x00 }, // 'D'
{ 0x41, 0x7F, 0x7F, 0x49, 0x5D, 0x41, 0x63, 0x00 }, // 'E'
{ 0x41, 0x7F, 0x7F, 0x49, 0x1D, 0x01, 0x03, 0x00 }, // 'F'
{ 0x1C, 0x3E, 0x63, 0x41, 0x51, 0x73, 0x72, 0x00 }, // 'G'
{ 0x7F, 0x7F, 0x08, 0x08, 0x7F, 0x7F, 0x00, 0x00 }, // 'H'
{ 0x00, 0x41, 0x7F, 0x7F, 0x41, 0x00, 0x00, 0x00 }, // 'I'
{ 0x30, 0x70, 0x40, 0x41, 0x7F, 0x3F, 0x01, 0x00 }, // 'J'
{ 0x41, 0x7F, 0x7F, 0x08, 0x1C, 0x77, 0x63, 0x00 }, // 'K'
{ 0x41, 0x7F, 0x7F, 0x41, 0x40, 0x60, 0x70, 0x00 }, // 'L'
{ 0x7F, 0x7F, 0x0E, 0x1C, 0x0E, 0x7F, 0x7F, 0x00 }, // 'M'
{ 0x7F, 0x7F, 0x06, 0x0C, 0x18, 0x7F, 0x7F, 0x00 }, // 'N'
{ 0x1C, 0x3E, 0x63, 0x41, 0x63, 0x3E, 0x1C, 0x00 }, // 'O'
{ 0x41, 0x7F, 0x7F, 0x49, 0x09, 0x0F, 0x06, 0x00 }, // 'P'
{ 0x1E, 0x3F, 0x21, 0x71, 0x7F, 0x5E, 0x00, 0x00 }, // 'Q'
{ 0x41, 0x7F, 0x7F, 0x09, 0x19, 0x7F, 0x66, 0x00 }, // 'R'
{ 0x26, 0x6F, 0x4D, 0x59, 0x73, 0x32, 0x00, 0x00 }, // 'S'
{ 0x03, 0x41, 0x7F, 0x7F, 0x41, 0x03, 0x00, 0x00 }, // 'T'
{ 0x7F, 0x7F, 0x40, 0x40, 0x7F, 0x7F, 0x00, 0x00 }, // 'U'
{ 0x1F, 0x3F, 0x60, 0x60, 0x3F, 0x1F, 0x00, 0x00 }, // 'V'
{ 0x7F, 0x7F, 0x30, 0x18, 0x30, 0x7F, 0x7F, 0x00 }, // 'W'
{ 0x43, 0x67, 0x3C, 0x18, 0x3C, 0x67, 0x43, 0x00 }, // 'X'
{ 0x07, 0x4F, 0x78, 0x78, 0x4F, 0x07, 0x00, 0x00 }, // 'Y'
{ 0x47, 0x63, 0x71, 0x59, 0x4D, 0x67, 0x73, 0x00 }, // 'Z'
{ 0x00, 0x7F, 0x7F, 0x41, 0x41, 0x00, 0x00, 0x00 }, // '['
{ 0x01, 0x03, 0x06, 0x0C, 0x18, 0x30, 0x60, 0x00 }, // backslash
{ 0x00, 0x41, 0x41, 0x7F, 0x7F, 0x00, 0x00, 0x00 }, // ']'
{ 0x08, 0x0C, 0x06, 0x03, 0x06, 0x0C, 0x08, 0x00 }, // '^'
{ 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80, 0x80 }, // '_'
{ 0x00, 0x00, 0x03, 0x07, 0x04, 0x00, 0x00, 0x00 }, // '`'
{ 0x20, 0x74, 0x54, 0x54, 0x3C, 0x78, 0x40, 0x00 }, // 'a'
{ 0x41, 0x7F, 0x3F, 0x48, 0x48, 0x78, 0x30, 0x00 }, // 'b'
{ 0x38, 0x7C, 0x44, 0x44, 0x6C, 0x28, 0x00, 0x00 }, // 'c'
{ 0x30, 0x78, 0x48, 0x49, 0x3F, 0x7F, 0x40, 0x00 }, // 'd'
{ 0x38, 0x7C, 0x54, 0x54, 0x5C, 0x18, 0x00, 0x00 }, // 'e'
{ 0x48, 0x7E, 0x7F, 0x49, 0x03, 0x02, 0x00, 0x00 }, // 'f'
{ 0x98, 0xBC, 0xA4, 0xA4, 0xF8, 0x7C, 0x04, 0x00 }, // 'g'
{ 0x41, 0x7F, 0x7F, 0x08, 0x04, 0x7C, 0x78, 0x00 }, // 'h'
{ 0x00, 0x44, 0x7D, 0x7D, 0x40, 0x00, 0x00, 0x00 }, // 'i'
{ 0x60, 0xE0, 0x80, 0x80, 0xFD, 0x7D, 0x00, 0x00 }, // 'j'
{ 0x41, 0x7F, 0x7F, 0x10, 0x38, 0x6C, 0x44, 0x00 }, // 'k'
{ 0x00, 0x41, 0x7F, 0x7F, 0x40, 0x00, 0x00, 0x00 }, // 'l'
{ 0x7C, 0x7C, 0x18, 0x38, 0x1C, 0x7C, 0x78, 0x00 }, // 'm'
{ 0x7C, 0x7C, 0x04, 0x04, 0x7C, 0x78, 0x00, 0x00 }, // 'n'
{ 0x38, 0x7C, 0x44, 0x44, 0x7C, 0x38, 0x00, 0x00 }, // 'o'
{ 0x84, 0xFC, 0xF8, 0xA4, 0x24, 0x3C, 0x18, 0x00 }, // 'p'
{ 0x18, 0x3C, 0x24, 0xA4, 0xF8, 0xFC, 0x84, 0x00 }, // 'q'
{ 0x44, 0x7C, 0x78, 0x4C, 0x04, 0x1C, 0x18, 0x00 }, // 'r'
{ 0x48, 0x5C, 0x54, 0x54, 0x74, 0x24, 0x00, 0x00 }, // 's'
{ 0x00, 0x04, 0x3E, 0x7F, 0x44, 0x24, 0x00, 0x00 }, // 't'
{ 0x3C, 0x7C, 0x40, 0x40, 0x3C, 0x7C, 0x40, 0x00 }, // 'u'
{ 0x1C, 0x3C, 0x60, 0x60, 0x3C, 0x1C, 0x00, 0x00 }, // 'v'
{ 0x3C, 0x7C, 0x70, 0x38, 0x70, 0x7C, 0x3C, 0x00 }, // 'w'
{ 0x44, 0x6C, 0x38, 0x10, 0x38, 0x6C, 0x44, 0x00 }, // 'x'
{ 0x9C, 0xBC, 0xA0, 0xA0, 0xFC, 0x7C, 0x00, 0x00 }, // 'y'
{ 0x4C, 0x64, 0x74, 0x5C, 0x4C, 0x64, 0x00, 0x00 }, // 'z'
{ 0x08, 0x08, 0x3E, 0x77, 0x41, 0x41, 0x00, 0x00 }, // '{'
{ 0x00, 0x00, 0x00, 0x77, 0x77, 0x00, 0x00, 0x00 }, // '|'
{ 0x41, 0x41, 0x77, 0x3E, 0x08, 0x08, 0x00, 0x00 }, // '}'
{ 0x02, 0x03, 0x01, 0x03, 0x02, 0x03, 0x01, 0x00 }, // '~'
{ 0x70, 0x78, 0x4C, 0x46, 0x4C, 0x78, 0x70, 0x00 }, // 0x7F
{ 0x0E, 0x9F, 0x91, 0xB1, 0xFB, 0x4A, 0x00, 0x00 }, // 0x80
{ 0x3A, 0x7A, 0x40, 0x40, 0x7A, 0x7A, 0x40, 0x00 }, // 0x81
{ 0x38, 0x7C, 0x54, 0x55, 0x5D, 0x19, 0x00, 0x00 }, // 0x82
{ 0x02, 0x23, 0x75, 0x55, 0x55, 0x7D, 0x7B, 0x42 }, // 0x83
{ 0x21, 0x75, 0x54, 0x54, 0x7D, 0x79, 0x40, 0x00 }, // 0x84
{ 0x21, 0x75, 0x55, 0x54, 0x7C, 0x78, 0x40, 0x00 }, // 0x85
{ 0x20, 0x74, 0x57, 0x57, 0x7C, 0x78, 0x40, 0x00 }, // 0x86
{ 0x18, 0x3C, 0xA4, 0xA4, 0xE4, 0x40, 0x00, 0x00 }, // 0x87
{ 0x02, 0x3B, 0x7D, 0x55, 0x55, 0x5D, 0x1B, 0x02 }, // 0x88
{ 0x39, 0x7D, 0x54, 0x54, 0x5D, 0x19, 0x00, 0x00 }, // 0x89
{ 0x39, 0x7D, 0x55, 0x54, 0x5C, 0x18, 0x00, 0x00 }, // 0x8A
{ 0x01, 0x45, 0x7C, 0x7C, 0x41, 0x01, 0x00, 0x00 }, // 0x8B
{ 0x02, 0x03, 0x45, 0x7D, 0x7D, 0x43, 0x02, 0x00 }, // 0x8C
{ 0x01, 0x45, 0x7D, 0x7C, 0x40, 0x00, 0x00, 0x00 }, // 0x8D
{ 0x79, 0x7D, 0x16, 0x12, 0x16, 0x7D, 0x79, 0x00 }, // 0x8E
{ 0x70, 0x78, 0x2B, 0x2B, 0x78, 0x70, 0x00, 0x00 }, // 0x8F
{ 0x44, 0x7C, 0x7C, 0x55, 0x55, 0x45, 0x00, 0x00 }, // 0x90
{ 0x20, 0x74, 0x54, 0x54, 0x7C, 0x7C, 0x54, 0x54 }, // 0x91
{ 0x7C, 0x7E, 0x0B, 0x09, 0x7F, 0x7F, 0x49, 0x00 }, // 0x92
{ 0x32, 0x7B, 0x49, 0x49, 0x7B, 0x32, 0x00, 0x00 }, // 0x93
{ 0x32, 0x7A, 0x48, 0x48, 0x7A, 0x32, 0x00, 0x00 }, // 0x94
{ 0x32, 0x7A, 0x4A, 0x48, 0x78, 0x30, 0x00, 0x00 }, // 0x95
{ 0x3A, 0x7B, 0x41, 0x41, 0x7B, 0x7A, 0x40, 0x00 }, // 0x96
{ 0x3A, 0x7A, 0x42, 0x40, 0x78, 0x78, 0x40, 0x00 }, // 0x97
{ 0x9A, 0xBA, 0xA0, 0xA0, 0xFA, 0x7A, 0x00, 0x00 }, // 0x98
{ 0x01, 0x19, 0x3C, 0x66, 0x66, 0x3C, 0x19, 0x01 }, // 0x99
{ 0x3D, 0x7D, 0x40, 0x40, 0x7D, 0x3D, 0x00, 0x00 }, // 0x9A
{ 0x18, 0x3C, 0x24, 0xE7, 0xE7, 0x24, 0x24, 0x00 }, // 0x9B
{ 0x68, 0x7E, 0x7F, 0x49, 0x43, 0x66, 0x20, 0x00 }, // 0x9C
{ 0x2B, 0x2F, 0xFC, 0xFC, 0x2F, 0x2B, 0x00, 0x00 }, // 0x9D
{ 0xFF, 0xFF, 0x09, 0x09, 0x2F, 0xF6, 0xF8, 0xA0 }, // 0x9E
{ 0x40, 0xC0, 0x88, 0xFE, 0x7F, 0x09, 0x03, 0x02 }, // 0x9F
{ 0x20, 0x74, 0x54, 0x55, 0x7D, 0x79, 0x40, 0x00 }, // 0xA0
{ 0x00, 0x44, 0x7D, 0x7D, 0x41, 0x00, 0x00, 0x00 }, // 0xA1
{ 0x30, 0x78, 0x48, 0x4A, 0x7A, 0x32, 0x00, 0x00 }, // 0xA2
{ 0x38, 0x78, 0x40, 0x42, 0x7A, 0x7A, 0x40, 0x00 }, // 0xA3
{ 0x7A, 0x7A, 0x0A, 0x0A, 0x7A, 0x70, 0x00, 0x00 }, // 0xA4
{ 0x7D, 0x7D, 0x19, 0x31, 0x7D, 0x7D, 0x00, 0x00 }, // 0xA5
{ 0x00, 0x26, 0x2F, 0x29, 0x2F, 0x2F, 0x28, 0x00 }, // 0xA6
{ 0x00, 0x26, 0x2F, 0x29, 0x2F, 0x26, 0x00, 0x00 }, // 0xA7
{ 0x30, 0x78, 0x4D, 0x45, 0x60, 0x20, 0x00, 0x00 }, // 0xA8
{ 0x38, 0x38, 0x08, 0x08, 0x08, 0x08, 0x00, 0x00 }, // 0xA9
{ 0x08, 0x08, 0x08, 0x08, 0x38, 0x38, 0x00, 0x00 }, // 0xAA
{ 0x4F, 0x6F, 0x30, 0x18, 0xCC, 0xEE, 0xBB, 0x91 }, // 0xAB
{ 0x4F, 0x6F, 0x30, 0x18, 0x6C, 0x76, 0xFB, 0xF9 }, // 0xAC
{ 0x00, 0x00, 0x00, 0x7B, 0x7B, 0x00, 0x00, 0x00 }, // 0xAD
{ 0x08, 0x1C, 0x36, 0x22, 0x08, 0x1C, 0x36, 0x22 }, // 0xAE
{ 0x22, 0x36, 0x1C, 0x08, 0x22, 0x36, 0x1C, 0x08 }, // 0xAF
{ 0xAA, 0x00, 0x55, 0x00, 0xAA, 0x00, 0x55, 0x00 }, // 0xB0
{ 0xAA, 0x55, 0xAA, 0x55, 0xAA, 0x55, 0xAA, 0x55 }, // 0xB1
{ 0xDD, 0xFF, 0xAA, 0x77, 0xDD, 0xAA, 0xFF, 0x77 }, // 0xB2
{ 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x00, 0x00, 0x00 }, // 0xB3
{ 0x10, 0x10, 0x10, 0xFF, 0xFF, 0x00, 0x00, 0x00 }, // 0xB4
{ 0x14, 0x14, 0x14, 0xFF, 0xFF, 0x00, 0x00, 0x00 }, // 0xB5
{ 0x10, 0x10, 0xFF, 0xFF, 0x00, 0xFF, 0xFF, 0x00 }, // 0xB6
{ 0x10, 0x10, 0xF0, 0xF0, 0x10, 0xF0, 0xF0, 0x00 }, // 0xB7
{ 0x14, 0x14, 0x14, 0xFC, 0xFC, 0x00, 0x00, 0x00 }, // 0xB8
{ 0x14, 0x14, 0xF7, 0xF7, 0x00, 0xFF, 0xFF, 0x00 }, // 0xB9
{ 0x00, 0x00, 0xFF, 0xFF, 0x00, 0xFF, 0xFF, 0x00 }, // 0xBA
{ 0x14, 0x14, 0xF4, 0xF4, 0x04, 0xFC, 0xFC, 0x00 }, // 0xBB
{ 0x14, 0x14, 0x17, 0x17, 0x10, 0x1F, 0x1F, 0x00 }, // 0xBC
{ 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x1F, 0x1F, 0x00 }, // 0xBD
{ 0x14, 0x14, 0x14, 0x1F, 0x1F, 0x00, 0x00, 0x00 }, // 0xBE
{ 0x10, 0x10, 0x10, 0xF0, 0xF0, 0x00, 0x00, 0x00 }, // 0xBF
{ 0x00, 0x00, 0x00, 0x1F, 0x1F, 0x10, 0x10, 0x10 }, // 0xC0
{ 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x10, 0x10 }, // 0xC1
{ 0x10, 0x10, 0x10, 0xF0, 0xF0, 0x10, 0x10, 0x10 }, // 0xC2
{ 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x10, 0x10, 0x10 }, // 0xC3
{ 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10, 0x10 }, // 0xC4
{ 0x10, 0x10, 0x10, 0xFF, 0xFF, 0x10, 0x10, 0x10 }, // 0xC5
{ 0x00, 0x00, 0x00, 0xFF, 0xFF, 0x14, 0x14, 0x14 }, // 0xC6
{ 0x00, 0x00, 0xFF, 0xFF, 0x00, 0xFF, 0xFF, 0x10 }, // 0xC7
{ 0x00, 0x00, 0x1F, 0x1F, 0x10, 0x17, 0x17, 0x14 }, // 0xC8
{ 0x00, 0x00, 0xFC, 0xFC, 0x04, 0xF4, 0xF4, 0x14 }, // 0xC9
{ 0x14, 0x14, 0x17, 0x17, 0x10, 0x17, 0x17, 0x14 }, // 0xCA
{ 0x14, 0x14, 0xF4, 0xF4, 0x04, 0xF4, 0xF4, 0x14 }, // 0xCB
{ 0x00, 0x00, 0xFF, 0xFF, 0x00, 0xF7, 0xF7, 0x14 }, // 0xCC
{ 0x14, 0x14, 0x14, 0x14, 0x14, 0x14, 0x14, 0x14 }, // 0xCD
{ 0x14, 0x14, 0xF7, 0xF7, 0x00, 0xF7, 0xF7, 0x14 }, // 0xCE
{ 0x14, 0x14, 0x14, 0x17, 0x17, 0x14, 0x14, 0x14 }, // 0xCF
{ 0x10, 0x10, 0x1F, 0x1F, 0x10, 0x1F, 0x1F, 0x10 }, // 0xD0
{ 0x14, 0x14, 0x14, 0xF4, 0xF4, 0x14, 0x14, 0x14 }, // 0xD1
{ 0x10, 0x10, 0xF0, 0xF0, 0x10, 0xF0, 0xF0, 0x10 }, // 0xD2
{ 0x00, 0x00, 0x1F, 0x1F, 0x10, 0x1F, 0x1F, 0x10 }, // 0xD3
{ 0x00, 0x00, 0x00, 0x1F, 0x1F, 0x14, 0x14, 0x14 }, // 0xD4
{ 0x00, 0x00, 0x00, 0xFC, 0xFC, 0x14, 0x14, 0x14 }, // 0xD5
{ 0x00, 0x00, 0xF0, 0xF0, 0x10, 0xF0, 0xF0, 0x10 }, // 0xD6
{ 0x10, 0x10, 0xFF, 0xFF, 0x10, 0xFF, 0xFF, 0x10 }, // 0xD7
{ 0x14, 0x14, 0x14, 0xFF, 0xFF, 0x14, 0x14, 0x14 }, // 0xD8
{ 0x10, 0x10, 0x10, 0x1F, 0x1F, 0x00, 0x00, 0x00 }, // 0xD9
{ 0x00, 0x00, 0x00, 0xF0, 0xF0, 0x10, 0x10, 0x10 }, // 0xDA
{ 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF }, // 0xDB
{ 0xF0, 0xF0, 0xF0, 0xF0, 0xF0, 0xF0, 0xF0, 0xF0 }, // 0xDC
{ 0xFF, 0xFF, 0xFF, 0xFF, 0x00, 0x00, 0x00, 0x00 }, // 0xDD
{ 0x00, 0x00, 0x00, 0x00, 0xFF, 0xFF, 0xFF, 0xFF }, // 0xDE
{ 0x0F, 0x0F, 0x0F, 0x0F, 0x0F, 0x0F, 0x0F, 0x0F }, // 0xDF
{ 0x38, 0x7C, 0x44, 0x6C, 0x38, 0x6C, 0x44, 0x00 }, // 0xE0
{ 0xFC, 0xFE, 0x2A, 0x2A, 0x3E, 0x14, 0x00, 0x00 }, // 0xE1
{ 0x7E, 0x7E, 0x02, 0x02, 0x06, 0x06, 0x00, 0x00 }, // 0xE2
{ 0x02, 0x7E, 0x7E, 0x02, 0x7E, 0x7E, 0x02, 0x00 }, // 0xE3
{ 0x63, 0x77, 0x5D, 0x49, 0x63, 0x63, 0x00, 0x00 }, // 0xE4
{ 0x38, 0x7C, 0x44, 0x7C, 0x3C, 0x04, 0x04, 0x00 }, // 0xE5
{ 0x80, 0xFE, 0x7E, 0x20, 0x20, 0x3E, 0x1E, 0x00 }, // 0xE6
{ 0x04, 0x06, 0x02, 0x7E, 0x7C, 0x06, 0x02, 0x00 }, // 0xE7
{ 0x99, 0xBD, 0xE7, 0xE7, 0xBD, 0x99, 0x00, 0x00 }, // 0xE8
{ 0x1C, 0x3E, 0x6B, 0x49, 0x6B, 0x3E, 0x1C, 0x00 }, // 0xE9
{ 0x4C, 0x7E, 0x73, 0x01, 0x73, 0x7E, 0x4C, 0x00 }, // 0xEA
{ 0x30, 0x78, 0x4A, 0x4F, 0x7D, 0x39, 0x00, 0x00 }, // 0xEB
{ 0x18, 0x3C, 0x24, 0x3C, 0x3C, 0x24, 0x3C, 0x18 }, // 0xEC
{ 0x98, 0xFC, 0x64, 0x3C, 0x3E, 0x27, 0x3D, 0x18 }, // 0xED
{ 0x1C, 0x3E, 0x6B, 0x49, 0x49, 0x00, 0x00, 0x00 }, // 0xEE
{ 0x7E, 0x7F, 0x01, 0x01, 0x7F, 0x7E, 0x00, 0x00 }, // 0xEF
{ 0x2A, 0x2A, 0x2A, 0x2A, 0x2A, 0x2A, 0x00, 0x00 }, // 0xF0
{ 0x44, 0x44, 0x5F, 0x5F, 0x44, 0x44, 0x00, 0x00 }, // 0xF1
{ 0x40, 0x51, 0x5B, 0x4E, 0x44, 0x40, 0x00, 0x00 }, // 0xF2
{ 0x40, 0x44, 0x4E, 0x5B, 0x51, 0x40, 0x00, 0x00 }, // 0xF3
{ 0x00, 0x00, 0x00, 0xFE, 0xFF, 0x01, 0x07, 0x06 }, // 0xF4
{ 0x60, 0xE0, 0x80, 0xFF, 0x7F, 0x00, 0x00, 0x00 }, // 0xF5
{ 0x08, 0x08, 0x6B, 0x6B, 0x08, 0x08, 0x00, 0x00 }, // 0xF6
{ 0x24, 0x36, 0x12, 0x36, 0x24, 0x36, 0x12, 0x00 }, // 0xF7
{ 0x00, 0x06, 0x0F, 0x09, 0x0F, 0x06, 0x00, 0x00 }, // 0xF8
{ 0x00, 0x00, 0x00, 0x18, 0x18, 0x00, 0x00, 0x00 }, // 0xF9
{ 0x00, 0x00, 0x00, 0x10, 0x10, 0x00, 0x00, 0x00 }, // 0xFA
{ 0x10, 0x30, 0x70, 0xC0, 0xFF, 0xFF, 0x01, 0x01 }, // 0xFB
{ 0x00, 0x1F, 0x1F, 0x01, 0x1F, 0x1E, 0x00, 0x00 }, // 0xFC
{ 0x00, 0x19, 0x1D, 0x17, 0x12, 0x00, 0x00, 0x00 }, // 0xFD
{ 0x00, 0x00, 0x3C, 0x3C, 0x3C, 0x3C, 0x00, 0x00 }, // 0xFE
{ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 }, // 0xFF
}; // end of cp437_font
class LedControl {
private :
/* The array for shifting the data to the devices */
byte spidata[16];
/* Send out a single command to the device */
void spiTransfer(int addr, byte opcode, byte data);
/* We keep track of the led-status for all 8 devices in this array */
byte status[64];
/* Data is shifted out of this pin*/
int SPI_MOSI;
/* The clock is signaled on this pin */
int SPI_CLK;
/* This one is driven LOW for chip selectzion */
int SPI_CS;
/* The maximum number of devices we use */
int maxDevices;
public:
/*
* Create a new controler
* Params :
* dataPin pin on the Arduino where data gets shifted out
* clockPin pin for the clock
* csPin pin for selecting the device
* numDevices maximum number of devices that can be controled
*/
LedControl(int dataPin, int clkPin, int csPin, int numDevices=1);
/*
* Gets the number of devices attached to this LedControl.
* Returns :
* int the number of devices on this LedControl
*/
int getDeviceCount();
/*
* Set the shutdown (power saving) mode for the device
* Params :
* addr The address of the display to control
* status If true the device goes into power-down mode. Set to false
* for normal operation.
*/
void shutdown(int addr, bool status);
/*
* Set the number of digits (or rows) to be displayed.
* See datasheet for sideeffects of the scanlimit on the brightness
* of the display.
* Params :
* addr address of the display to control
* limit number of digits to be displayed (1..8)
*/
void setScanLimit(int addr, int limit);
/*
* Set the brightness of the display.
* Params:
* addr the address of the display to control
* intensity the brightness of the display. (0..15)
*/
void setIntensity(int addr, int intensity);
/*
* Switch all Leds on the display off.
* Params:
* addr address of the display to control
*/
void clearDisplay(int addr);
/*
* Set the status of a single Led.
* Params :
* addr address of the display
* row the row of the Led (0..7)
* col the column of the Led (0..7)
* state If true the led is switched on,
* if false it is switched off
*/
void setLed(int addr, int row, int col, bool state);
/*
* Set all 8 Led's in a row to a new state
* Params:
* addr address of the display
* row row which is to be set (0..7)
* value each bit set to 1 will light up the
* corresponding Led.
*/
void setRow(int addr, int row, byte value);
/*
* Set all 8 Led's in a column to a new state
* Params:
* addr address of the display
* col column which is to be set (0..7)
* value each bit set to 1 will light up the
* corresponding Led.
*/
void setColumn(int addr, int col, byte value);
/*
* Display a hexadecimal digit on a 7-Segment Display
* Params:
* addr address of the display
* digit the position of the digit on the display (0..7)
* value the value to be displayed. (0x00..0x0F)
* dp sets the decimal point.
*/
void setDigit(int addr, int digit, byte value, bool dp);
/*
* Display a character on a 7-Segment display.
* There are only a few characters that make sense here :
* '0','1','2','3','4','5','6','7','8','9','0',
* 'A','b','c','d','E','F','H','L','P',
* '.','-','_',' '
* Params:
* addr address of the display
* digit the position of the character on the display (0..7)
* value the character to be displayed.
* dp sets the decimal point.
*/
void setChar(int addr, int digit, char value, bool dp);
void setLetter (int addr, const byte c);
void tweenLetters (int addr, const byte c1, const byte c2, int speed=100);
};
/*************************************************************************************/
//the opcodes for the MAX7221 and MAX7219
#define OP_NOOP 0
#define OP_DIGIT0 1
#define OP_DIGIT1 2
#define OP_DIGIT2 3
#define OP_DIGIT3 4
#define OP_DIGIT4 5
#define OP_DIGIT5 6
#define OP_DIGIT6 7
#define OP_DIGIT7 8
#define OP_DECODEMODE 9
#define OP_INTENSITY 10
#define OP_SCANLIMIT 11
#define OP_SHUTDOWN 12
#define OP_DISPLAYTEST 15
LedControl::LedControl(int dataPin, int clkPin, int csPin, int numDevices) {
SPI_MOSI=dataPin;
SPI_CLK=clkPin;
SPI_CS=csPin;
if(numDevices<=0 || numDevices>8 )
numDevices=8;
maxDevices=numDevices;
pinMode(SPI_MOSI,OUTPUT);
pinMode(SPI_CLK,OUTPUT);
pinMode(SPI_CS,OUTPUT);
digitalWrite(SPI_CS,LOW);
SPI_MOSI=dataPin;
for(int i=0;i<64;i++)
status[i]=0x00;
for(int i=0;i<maxDevices;i++) {
spiTransfer(i,OP_DISPLAYTEST,0);
//scanlimit is set to max on startup
setScanLimit(i,7);
//decode is done in source
spiTransfer(i,OP_DECODEMODE,0);
setIntensity(i,1);
clearDisplay(i);
//we go into shutdown-mode on startup
shutdown(i,true);
}
}
int LedControl::getDeviceCount() {
return maxDevices;
}
void LedControl::shutdown(int addr, bool b) {
if(addr<0 || addr>=maxDevices)
return;
if(b)
spiTransfer(addr, OP_SHUTDOWN,0);
else
spiTransfer(addr, OP_SHUTDOWN,1);
}
void LedControl::setScanLimit(int addr, int limit) {
if(addr<0 || addr>=maxDevices)
return;
if(limit>=0 && limit<8)
spiTransfer(addr, OP_SCANLIMIT,limit);
}
void LedControl::setIntensity(int addr, int intensity) {
if(addr<0 || addr>=maxDevices)
return;
if(intensity>=0 && intensity<16)
spiTransfer(addr, OP_INTENSITY,intensity);
}
void LedControl::clearDisplay(int addr) {
int offset;
if(addr<0 || addr>=maxDevices)
return;
offset=addr*8;
for(int i=0;i<8;i++) {
status[offset+i]=0;
spiTransfer(addr, i+1,status[offset+i]);
}
}
void LedControl::setLed(int addr, int row, int column, bool state) {
int offset;
byte val=0x00;
if(addr<0 || addr>=maxDevices)
return;
if(row<0 || row>7 || column<0 || column>7)
return;
offset=addr*8;
val=128 >> column;
if(state)
status[offset+row]=status[offset+row]|val;
else {
val=~val;
status[offset+row]=status[offset+row]&val;
}
spiTransfer(addr, row+1,status[offset+row]);
}
void LedControl::setRow(int addr, int row, byte value) {
int offset;
if(addr<0 || addr>=maxDevices)
return;
if(row<0 || row>7)
return;
offset=addr*8;
status[offset+row]=value;
spiTransfer(addr, row+1,status[offset+row]);
}
void LedControl::setColumn(int addr, int col, byte value) {
byte val;
if(addr<0 || addr>=maxDevices)
return;
if(col<0 || col>7)
return;
for(int row=0;row<8;row++) {
val=value >> (7-row);
val=val & 0x01;
setLed(addr,row,col,val);
}
}
void LedControl::setDigit(int addr, int digit, byte value, bool dp) {
int offset;
byte v;
if(addr<0 || addr>=maxDevices)
return;
if(digit<0 || digit>7 || value>15)
return;
offset=addr*8;
v=charTable[value];
if(dp)
v|=128;
status[offset+digit]=v;
spiTransfer(addr, digit+1,v);
}
void LedControl::setChar(int addr, int digit, char value, bool dp) {
int offset;
byte index,v;
if(addr<0 || addr>=maxDevices)
return;
if(digit<0 || digit>7)
return;
offset=addr*8;
index=(byte)value;
if(index >127) {
//nothing define we use the space char
value=32;
}
v=charTable[index];
if(dp)
v|=128;
status[offset+digit]=v;
spiTransfer(addr, digit+1,v);
}
void LedControl::spiTransfer(int addr, volatile byte opcode, volatile byte data) {
//Create an array with the data to shift out
int offset=addr*2;
int maxbytes=maxDevices*2;
for(int i=0;i<maxbytes;i++)
spidata[i]=(byte)0;
//put our device data into the array
spidata[offset+1]=opcode;
spidata[offset]=data;
//enable the line
digitalWrite(SPI_CS,LOW);
//Now shift out the data
for(int i=maxbytes;i>0;i--)
shiftOut(SPI_MOSI,SPI_CLK,MSBFIRST,spidata[i-1]);
//latch the data onto the display
digitalWrite(SPI_CS,HIGH);
}
void LedControl::setLetter (int addr, const byte c){
for (byte col = 0; col < 8; col++)
setColumn(addr, 7-col, cp437_font [c] [col]);
} // end of letter
void LedControl::tweenLetters (int addr, const byte c1, const byte c2, int speed){
for (byte step = 0; step < 8; step++){
for (byte col = 0; col < 8; col++){
if(col<8-step)
setColumn(addr, 7-col, cp437_font [c1] [col+step]);
else
setColumn(addr, 7-col, cp437_font [c2] [col+step-8]);
}
delay(speed);
}
}
/************************************************************************************************/
LedControl *led;
int phase = 0;
char message[64];
int messageLength = 0;
void setup() {
led = new LedControl(A0,A2,A1,1); //DIN,CLK,CS,HowManyDisplays
led-> shutdown(0,false); //Turn it on
}
void loop() {
if(phase==0){ //Message-loop starts
sprintf(message,"Uptime:%d",(int)(millis()/1000)); //update message
messageLength = strlen(message); // ...and lenght
led->tweenLetters(0,' ',message[phase]); //scroll from empty to 1 letter
}
if(phase<messageLength-1){ //next characters except last one
led->tweenLetters(0,message[phase],message[phase+1]);
phase++;
}else if(phase==messageLength-1){//last character scrolls to empty
led->tweenLetters(0,message[phase],' ');
phase = 0; //restart message-loop
}
}We used these 8x8 screens for our open source thermostat:
However, we did them with a local toolchain and multiple files/libraries. That capability coming soon to the IDE!
Thanks for the link Zach!
Super cool!
hey @weakset!
Thanks for sharing your code! Unfortunately i don’t have the backpack, but will try to get one to get it work!
cheers!
Thanks for sharing Zach - trying to piece together how to compile it myself - is there any way I can just compile the Adafruit_GFX and Adafruit_LEDBackpack to copy & paste into the top of the online editor rather than having to reflash my device? Getting a bunch of weird errors when I try to copy & paste the .h & .cpp files at the moment - making progress by progressively deleting include statements; at a wall with https://gist.github.com/jongd/18bfbaf756522d0a8788 not compiling though
Hey @jongold; we’ll have capabilities for multiple files in the IDE within the next two weeks, which will make this much easier; in the meantime, I think you’re on the right track, just have to diligently work through the compile errors. Are you starting with these files?
@zach ahh that’s cool - this level of C is a bit beyond me - I’ll wait patiently for the update
Can I ask how you got the temperature control bezel working? I was thinking of some sort of Hall effect sensor to measure direction of turn but that seems overkill here?
Did anyone get this working. I see the ability to add additional files, so I included the library files just like was done in the thermostat project.
Then I assume I need to setup the pins and run the light code in the loop function. I am completely new to C++. Anyone do this and post the code to github?
Just a quick Q on this - surely there must be wires running from the front to the back (or you’re using some rf controller to turn the boiler on/off). If you’re running wires how are you avoiding them getting twisted round and round inside the build?
I could see some sort of metal ring with contacts working but that doesn’t seem to be documented.
@zach I like the
quite a lot and was wondering if the code for the Adafruit_LEDBackpack has been updated so it can be used in the IDE with seperate .h and .ccp files ? The way it is now I don’t get it to compile. What should be changed in order to get it compiled ? where to put the .c file ?
KR,
Rudy
Hi @rudyvan
You can add multiple files in the webIDE “Sparkulator” by clicking the circle-plus above the code next to the name of the current file, typically something.ino.
I have the Adafruit LED backpack library working for my 7-segment display (I don’t have the the 8x8). The changes are simple.
In the header file Adafruit_LEDBackpack.h delete these lines:
#if (ARDUINO >= 100)
#include "Arduino.h"
#else
#include "WProgram.h"
#endif
#ifdef __AVR_ATtiny85__
#include <TinyWireM.h>
#else
#include <Wire.h>
#endif
And in the Adafruit_LEDBackpack.cpp file delete this:
#ifdef __AVR_ATtiny85__
#include <TinyWireM.h>
#define Wire TinyWireM
#else
#include <Wire.h>
#endif
You also need the Adafruit GFX library and the font file glcdfont.c. I put the font file into a .h file since you can’t have a .c file. Just leave the .cpp file empty for the font file.
In one of your header files, you will need to do
#include "application.h"
@bko thanks for the tips.
I managed to make the application.h file. Unfortunately the whole thing doesn’t compile. I also need the Adafruit_GFX files and I see that in both the Adafruit_LEDBackpack.h file there is a reference to: #include “spark_wiring_i2c.h” and in Adafruit_GFC.h there is reference to #include “spark_wiring.h” and #include “spark_wiring_print.h”.
I don’t find those files, I replaced the “” to <> but that doesn’t help.
the compiler output is
In file included from ../inc/spark_wiring.h:30:0,
from Adafruit_GFX.h:4,
from Adafruit_GFX.cpp:33:
../../core-common-lib/SPARK_Firmware_Driver/inc/config.h:12:2: warning: #warning "Defaulting to Release Build" [-Wcpp]
In file included from ../inc/spark_wiring.h:30:0,
from ../inc/spark_wiring_stream.h:36,
from ../inc/spark_wiring_i2c.h:30,
from Adafruit_LEDBackpack.h:21,
from Adafruit_LEDBackpack.cpp:21:
../../core-common-lib/SPARK_Firmware_Driver/inc/config.h:12:2: warning: #warning "Defaulting to Release Build" [-Wcpp]
In file included from ../inc/spark_wiring.h:30:0,
from ../inc/spark_wiring_stream.h:36,
from ../inc/spark_wiring_i2c.h:30,
from Adafruit_LEDBackpack.h:21,
from ledbackpack.cpp:5:
../../core-common-lib/SPARK_Firmware_Driver/inc/config.h:12:2: warning: #warning "Defaulting to Release Build" [-Wcpp]
ledbackpack.cpp:9:30: error: 'String' was not declared in this scope
ledbackpack.cpp:10:18: error: variable or field 'setupMatrix' declared void
Any suggestion ?
Thanks,
Rudy
HI @rudyvan
Just to make sure one point is crystal clear–you don’t write an application.h file, you include that existing file in your source code. with a #include statement.
I put my ported versions of the Adafruit libraries on my github:
You don’t need a git client to use these–you can download a zip file of all the files right from that page.
You need to grab the Adafruit_GFX_Spark.h and .cpp file, plus the Adafruit_LEDBackpack.h and .cpp files, plus the glcdfont.h and add these to your project in the webIDE (or in libraries for local build). In the webIDE, you click the little circle-plus next to your program’s name near the top of the screen. The webIDE automatically add lines like:
// This #include statement was automatically added by the Spark IDE.
#include "Adafruit_GFX.h"
// This #include statement was automatically added by the Spark IDE.
#include "Adafruit_LEDBackpack.h"
// This #include statement was automatically added by the Spark IDE.
#include "glcdfont.h"
Just leave the glcdfont.cpp empty. If you are building locally, you need to add these to your file.
Thanks for the help Brian. I managed to het the backpack and GFX .h and .ccp to compile with an empty setup and loop section in .ino file. Unfortunately once I try to put some code it still gives compile errors as I don’t have the “wire” library. Where to get the one that will make the code compile ?
KR,
> In file included from ../inc/spark_wiring.h:30:0,
> from ../inc/application.h:31,
> from Adafruit_GFX_Spark.h:4,
> from Adafruit_GFX_Spark.cpp:33:
> ../../core-common-lib/SPARK_Firmware_Driver/inc/config.h:12:2: warning: #warning "Defaulting to Release Build" [-Wcpp]
> In file included from ../inc/spark_wiring.h:30:0,
> from ../inc/application.h:31,
> from Adafruit_GFX_Spark.h:4,
> from Adafruit_LEDBackpack_Spark.h:21,
> from Adafruit_LEDBackpack_Spark.cpp:21:
> ../../core-common-lib/SPARK_Firmware_Driver/inc/config.h:12:2: warning: #warning "Defaulting to Release Build" [-Wcpp]
> In file included from ../inc/spark_wiring.h:30:0,
> from ../inc/application.h:31,
> from ledbackpack.cpp:2:
> ../../core-common-lib/SPARK_Firmware_Driver/inc/config.h:12:2: warning: #warning "Defaulting to Release Build" [-Wcpp]
> ledbackpack.cpp: In function 'void setup()':
> ledbackpack.cpp:22:10: error: 'class Adafruit_LEDBackpack' has no member named 'drawPixel'
> make: *** [ledbackpack.o] Error 1
> Error: Could not compile. Please review your code.
Any suggestion ?
Thanks a lot
Hi @rudyvan
wire is built in already, you don’t need to add it. So your code is in ledbackpack.cpp, right? Does it have lines like this near the top?
#include "application.h"
#include "Adafruit_GFX.h"
#include "Adafruit_LEDBackpack.h"
#include "glcdfont.h"
It occurred to me last night that I should have told you to rename the Adafruit files to not have the “_Spark” part. I will fix this later tonight.
These lines are automatically added for you in the webIDE for your main program “MyName.ino” but if you are using .cpp file or building locally, you need to add these yourself.
Hi Brian,
I have the code in ledbackpack.ino and yes i removed the _spark naming.
I’m using the webIDE.
It doesn’t compile
KR,
Rudy
I copied all of these out of my time and temp webIDE project, so it must be something else.
In the webIDE you still need
#include "Adafruit_GFX.h"
#include "Adafruit_LEDBackpack.h"
#include "glcdfont.h"
At the top of your main program, ledbackpack.ino. Normally when you add a new .h and .cpp file, it adds these automatically.
Do you get the same error: error: 'class Adafruit_LEDBackpack' has no member named 'drawPixel'? This means that the includes are not right since the class does have a drawPixel
Can you share the code for your program here?
Hi -
I apologize for showing up one year late to this thread but I’ve got the same problem that Rudy was seeing. So far I’ve done the following…
When I compile I get the same error as Rudy…
temperature.cpp:3:18: error: variable or field 'setupMatrix' declared void
void setupMatrix(Adafruit_8x8matrix m);
^
temperature.cpp:3:18: error: 'Adafruit_8x8matrix' was not declared in this scope
make: *** [temperature.o] Error 1
I can boil the application down to just about nothing to demonstrate the issue…
#include "glcdfont.h"
#include "Adafruit_GFX.h"
#include "Adafruit_LEDBackpack.h"
Adafruit_8x8matrix matrix1;
void setupMatrix(Adafruit_8x8matrix m) {}
void setup() {}
void loop() {}
Weirdly the compiler seems to be OK with the Adafruit_8x8matrix matrix1;
It just doesn’t seem to like the void setupMatrix(Adafruit_8x8matrix m) {}
I also tried using the Adafruit libraries from the Spark Thermostat project from about a year ago… same issue.
Any help appreciated.
thanks,
dan
