Hello People of Particle!,
I am trying to get my Thermal Printer to work properly with a revised Adafruit_Thermal Library.
The one that is currently available didn’t compile and after a bit of trial and error I got it to work with my code, but I can’t seem to get anything other then printer.println() and printer.justify(‘C’) to work.
I want to define the heatTime to get a better print, but it wont change anything no matter what I try.
I also tried to change Heating dots and Heat interval in Adafruit_Thermal.cpp with no change.
Could you help me find my error?
I am very new to coding and there might be a few mistakes, but I can’t seem to find documentation on this…
My Hardware:
Photon on OS 2.0.0
Printer: GOOJPRT QR204 TTL
Power Supply: 30W, 5V, 6A (final project includes LEDs)
My Code:
#include "Particle.h"
#include "Adafruit_Thermal.h"
SYSTEM_MODE(AUTOMATIC);
// This variable is for double checking the device is communicating
bool PrinterReady = false;
int printer_RX_Pin = 0;
int printer_TX_Pin = 0;
Adafruit_Thermal printer (printer_RX_Pin, printer_TX_Pin);
void setup() {
Serial.begin(9600);
//Set up the Particle variable and function, then connect
//to the Particle Cloud
Particle.variable("PrinterReady", PrinterReady);
Particle.function("message", receiveMessage);
Particle.connect();
printer.begin(255); //does not change anything in print
PrinterReady = true;
}
void loop() {
// not needed in this example
}
int receiveMessage(String msg) {//print received message
printer.wake(); // MUST call wake() before printing again, even if reset
// For debug purposes, send an event saying we received a message
Particle.publish("message-received", msg, PUBLIC);

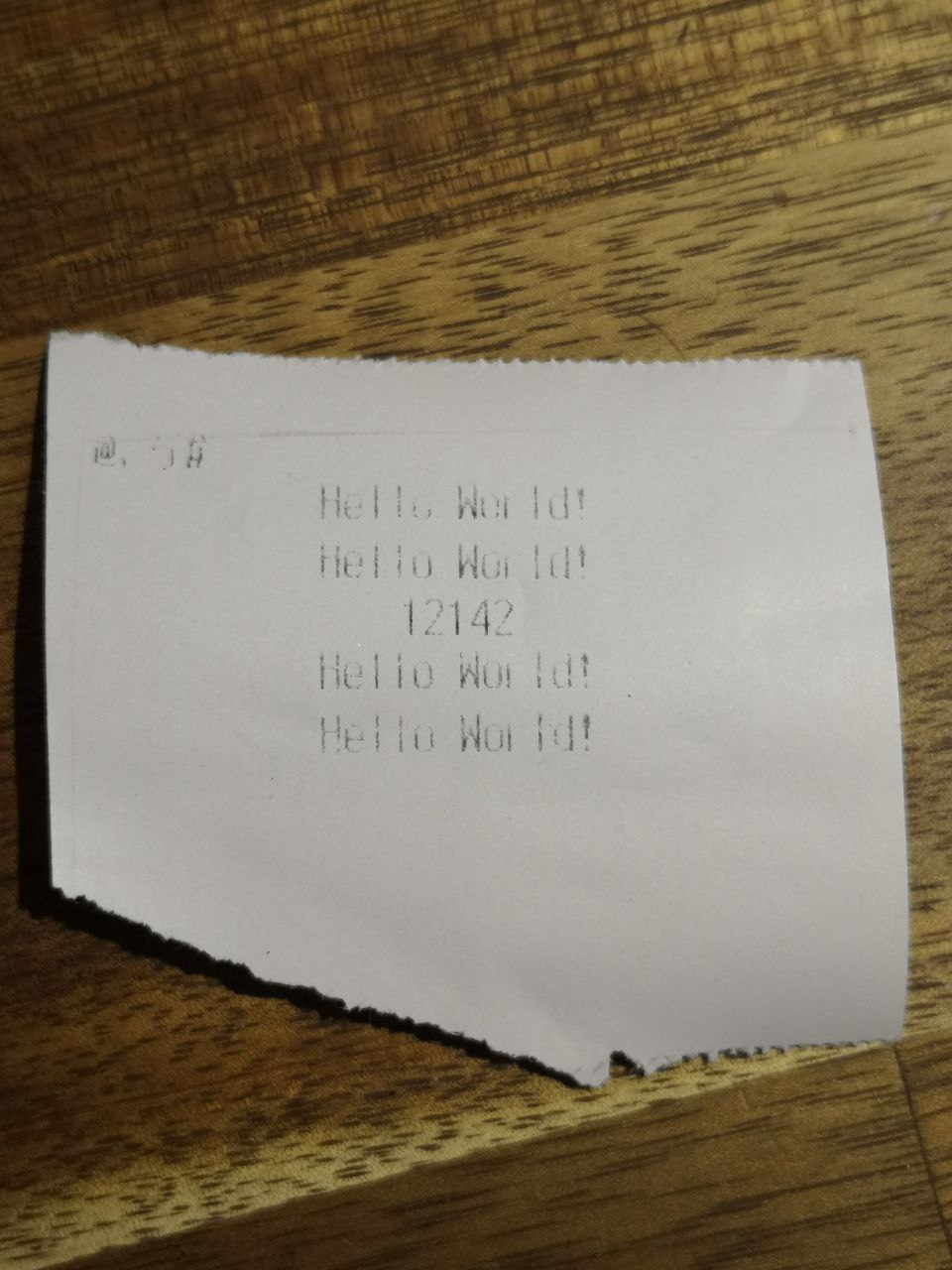

// Print the message with some ascii borders (32 characters wide)
printer.feed(2); // is not doing anything
printer.justify('C'); // works
printer.println(msg); // test-message to seperate examples
printer.feed(20); // is not doing anything
printer.println(msg); // test-message to seperate examples
printer.println('/n'); // prints weird characters
printer.println(msg); // test-message to seperate examples
printer.feedRows(5); // is not doing anything
printer.println(msg); // test-message to seperate examples
printer.println(""); // only thing that works like a feed...
printer.println(""); // only thing that works like a feed...
// Reset
printer.setDefault();
printer.sleep(); // Tell printer to sleep
// When the function is done, return 1 so the sender knows it worked
return 1;
}
Adafruit_Thermal.h:
/*************************************************************************
This is an Arduino library for the Adafruit Thermal Printer.
Pick one up at --> http://www.adafruit.com/products/597
These printers use TTL serial to communicate, 2 pins are required.
Adafruit invests time and resources providing this open source code.
Please support Adafruit and open-source hardware by purchasing products
from Adafruit!
Written by Limor Fried/Ladyada for Adafruit Industries.
MIT license, all text above must be included in any redistribution.
*************************************************************************/
#ifndef Thermal_h
#define Thermal_h
#define PARTICLE 1 //Temporary until this is done by the IDE/CLI
#include "Particle.h"
#define pgm_read_byte(addr) (*(const unsigned char *)(addr))
#define pgm_read_word(addr) (*(const unsigned short *)(addr))
// Barcode types
#define UPC_A 0
#define UPC_E 1
#define EAN13 2
#define EAN8 3
#define CODE39 4
#define I25 5
#define CODEBAR 6
#define CODE93 7
#define CODE128 8
#define CODE11 9
#define MSI 10
#define SERIAL_IMPL USARTSerial
#define PRINTER_PRINT(a) _printer->write(a);
class Adafruit_Thermal : public Print {
public:
Adafruit_Thermal(int RX_Pin, int TX_Pin);
void
begin(int heatTime=200),
reset(),
setDefault(),
test(),
testPage(),
normal(),
inverseOn(),
inverseOff(),
upsideDownOn(),
upsideDownOff(),
doubleHeightOn(),
doubleHeightOff(),
doubleWidthOn(),
doubleWidthOff(),
boldOn(),
boldOff(),
underlineOn(uint8_t weight=1),
underlineOff(),
strikeOn(),
strikeOff(),
justify(char value),
feed(uint8_t x=1),
feedRows(uint8_t),
flush(),
online(),
offline(),
sleep(),
sleepAfter(uint8_t seconds),
wake(),
listen(),
setSize(char value),
setLineHeight(int val=32),
printBarcode(char * text, uint8_t type),
setBarcodeHeight(int val=50),
printBitmap(int w, int h, const uint8_t *bitmap, bool fromProgMem = true),
printBitmap(int w, int h, Stream *stream),
printBitmap(Stream *stream),
timeoutSet(unsigned long x),
timeoutWait(),
setTimes(unsigned long, unsigned long),
setCharSpacing(int spacing), // Not working
tab(); // Not working
bool hasPaper();
size_t write(uint8_t c);
protected:
SERIAL_IMPL
*_printer;
uint8_t
prevByte, // Last character issued to printer
column, // Last horizontal column printed
maxColumn, // Page width (output 'wraps' at this point)
charHeight, // Height of characters, in 'dots'
lineSpacing, // Inter-line spacing (not line height), in dots
barcodeHeight; // Barcode height in dots, not including text
unsigned long
resumeTime, // Wait until micros() exceeds this before sending byte
dotPrintTime, // Time to print a single dot line, in microseconds
dotFeedTime; // Time to feed a single dot line, in microseconds
int
printMode,
_RX_Pin,
_TX_Pin;
void
setPrintMode(uint8_t mask),
unsetPrintMode(uint8_t mask),
writePrintMode(),
writeBytes(uint8_t a),
writeBytes(uint8_t a, uint8_t b),
writeBytes(uint8_t a, uint8_t b, uint8_t c),
writeBytes(uint8_t a, uint8_t b, uint8_t c, uint8_t d);
};
#endif // Thermal_h
Adafruit_Thermal.cpp:
/*************************************************************************
This is an Arduino library for the Adafruit Thermal Printer.
Pick one up at --> http://www.adafruit.com/products/597
These printers use TTL serial to communicate, 2 pins are required.
Adafruit invests time and resources providing this open source code.
Please support Adafruit and open-source hardware by purchasing products
from Adafruit!
Written by Limor Fried/Ladyada for Adafruit Industries.
MIT license, all text above must be included in any redistribution.
*************************************************************************/
#include "Adafruit_Thermal.h"
// Though most of these printers are factory configured for 19200 baud
// operation, a few rare specimens instead work at 9600. If so, change
// this constant. This will NOT make printing slower! The physical
// print and feed mechanisms are the limiting factor, not the port speed.
#define BAUDRATE 9600
// Number of microseconds to issue one byte to the printer. 11 bits
// (not 8) to accommodate idle, start and stop bits. Idle time might
// be unnecessary, but erring on side of caution here.
#define BYTE_TIME (11L * 1000000L / BAUDRATE)
// Because there's no flow control between the printer and Arduino,
// special care must be taken to avoid overrunning the printer's buffer.
// Serial output is throttled based on serial speed as well as an estimate
// of the device's print and feed rates (relatively slow, being bound to
// moving parts and physical reality). After an operation is issued to
// the printer (e.g. bitmap print), a timeout is set before which any
// other printer operations will be suspended. This is generally more
// efficient than using delay() in that it allows the parent code to
// continue with other duties (e.g. receiving or decoding an image)
// while the printer physically completes the task.
// This method sets the estimated completion time for a just-issued task.
void Adafruit_Thermal::timeoutSet(unsigned long x) {
resumeTime = micros() + x;
}
// This function waits (if necessary) for the prior task to complete.
void Adafruit_Thermal::timeoutWait() {
while((long)(micros() - resumeTime) < 0L); // Rollover-proof
}
// Printer performance may vary based on the power supply voltage,
// thickness of paper, phase of the moon and other seemingly random
// variables. This method sets the times (in microseconds) for the
// paper to advance one vertical 'dot' when printing and feeding.
// For example, in the default initialized state, normal-sized text is
// 24 dots tall and the line spacing is 32 dots, so the time for one
// line to be issued is approximately 24 * print time + 8 * feed time.
// The default print and feed times are based on a random test unit,
// but as stated above your reality may be influenced by many factors.
// This lets you tweak the timing to avoid excessive delays and/or
// overrunning the printer buffer.
void Adafruit_Thermal::setTimes(unsigned long p, unsigned long f) {
dotPrintTime = p;
dotFeedTime = f;
}
// Constructor
Adafruit_Thermal::Adafruit_Thermal(int RX_Pin, int TX_Pin) {
//For PARTICLE, RX/TX pins not used since using Serial1
_RX_Pin = RX_Pin;
_TX_Pin = TX_Pin;
}
// The next four helper methods are used when issuing configuration
// commands, printing bitmaps or barcodes, etc. Not when printing text.
void Adafruit_Thermal::writeBytes(uint8_t a) {
timeoutWait();
PRINTER_PRINT(a);
timeoutSet(BYTE_TIME);
}
void Adafruit_Thermal::writeBytes(uint8_t a, uint8_t b) {
timeoutWait();
PRINTER_PRINT(a);
PRINTER_PRINT(b);
timeoutSet(2 * BYTE_TIME);
}
void Adafruit_Thermal::writeBytes(uint8_t a, uint8_t b, uint8_t c) {
timeoutWait();
PRINTER_PRINT(a);
PRINTER_PRINT(b);
PRINTER_PRINT(c);
timeoutSet(3 * BYTE_TIME);
}
void Adafruit_Thermal::writeBytes(uint8_t a, uint8_t b, uint8_t c, uint8_t d) {
timeoutWait();
PRINTER_PRINT(a);
PRINTER_PRINT(b);
PRINTER_PRINT(c);
PRINTER_PRINT(d);
timeoutSet(3 * BYTE_TIME);
}
// The underlying method for all high-level printing (e.g. println()).
// The inherited Print class handles the rest!
#if ((ARDUINO >= 100) || (PARTICLE == 1))
size_t Adafruit_Thermal::write(uint8_t c) {
#else
void Adafruit_Thermal::write(uint8_t c) {
#endif
if(c != 0x13) { // Strip carriage returns
timeoutWait();
PRINTER_PRINT(c);
unsigned long d = BYTE_TIME;
if((c == '\n') || (column == maxColumn)) { // If newline or wrap
d += (prevByte == '\n') ?
((charHeight+lineSpacing) * dotFeedTime) : // Feed line
((charHeight*dotPrintTime)+(lineSpacing*dotFeedTime)); // Text line
column = 0;
c = '\n'; // Treat wrap as newline on next pass
} else {
column++;
}
timeoutSet(d);
prevByte = c;
}
#if ((ARDUINO >= 100) || (PARTICLE == 1))
return 1;
#endif
}
void Adafruit_Thermal::begin(int heatTime) {
#if defined (PARTICLE)
_printer = &Serial1; //For PARTICLE, use Serial1 Tx, Rx pins
_printer->begin(BAUDRATE);
#else
_printer = new SERIAL_IMPL(_RX_Pin, _TX_Pin);
_printer->begin(BAUDRATE);
#endif
// The printer can't start receiving data immediately upon power up --
// it needs a moment to cold boot and initialize. Allow at least 1/2
// sec of uptime before printer can receive data.
timeoutSet(500000L);
wake();
reset();
// Description of print settings from page 23 of the manual:
// ESC 7 n1 n2 n3 Setting Control Parameter Command
// Decimal: 27 55 n1 n2 n3
// Set "max heating dots", "heating time", "heating interval"
// n1 = 0-255 Max printing dots, Unit (8dots), Default: 7 (64 dots)
// n2 = 3-255 Heating time, Unit (10us), Default: 80 (800us)
// n3 = 0-255 Heating interval, Unit (10us), Default: 2 (20us)
// The more max heating dots, the more peak current will cost
// when printing, the faster printing speed. The max heating
// dots is 8*(n1+1). The more heating time, the more density,
// but the slower printing speed. If heating time is too short,
// blank page may occur. The more heating interval, the more
// clear, but the slower printing speed.
writeBytes(27, 55); // Esc 7 (print settings)
writeBytes(20); // Heating dots (20=balance of darkness vs no jams)
writeBytes(heatTime); // Library default = 255 (max)
writeBytes(250); // Heat interval (500 uS = slower, but darker)
// Description of print density from page 23 of the manual:
// DC2 # n Set printing density
// Decimal: 18 35 n
// D4..D0 of n is used to set the printing density. Density is
// 50% + 5% * n(D4-D0) printing density.
// D7..D5 of n is used to set the printing break time. Break time
// is n(D7-D5)*250us.
// (Unsure of the default value for either -- not documented)
#define printDensity 20 // 120% (? can go higher, text is darker but fuzzy)
#define printBreakTime 4 // 500 uS
writeBytes(18, 35); // DC2 # (print density)
writeBytes((printBreakTime << 5) | printDensity);
dotPrintTime = 30000; // See comments near top of file for
dotFeedTime = 2100; // an explanation of these values.
}
// Reset printer to default state.
void Adafruit_Thermal::reset() {
prevByte = '\n'; // Treat as if prior line is blank
column = 0;
maxColumn = 32;
charHeight = 24;
lineSpacing = 8;
barcodeHeight = 50;
writeBytes(27, 64);
}
// Reset text formatting parameters.
void Adafruit_Thermal::setDefault(){
online();
justify('L');
inverseOff();
doubleHeightOff();
setLineHeight(32);
boldOff();
underlineOff();
setBarcodeHeight(50);
setSize('s');
}
void Adafruit_Thermal::test(){
println("Hello World!");
feed(2);
}
void Adafruit_Thermal::testPage() {
writeBytes(18, 84);
timeoutSet(
dotPrintTime * 24 * 26 + // 26 lines w/text (ea. 24 dots high)
dotFeedTime * (8 * 26 + 32)); // 26 text lines (feed 8 dots) + blank line
}
void Adafruit_Thermal::setBarcodeHeight(int val) { // Default is 50
if(val < 1) val = 1;
barcodeHeight = val;
writeBytes(29, 104, val);
}
void Adafruit_Thermal::printBarcode(char * text, uint8_t type) {
int i = 0;
byte c;
writeBytes(29, 72, 2); // Print label below barcode
writeBytes(29, 119, 3); // Barcode width
writeBytes(29, 107, type); // Barcode type (listed in .h file)
do { // Copy string + NUL terminator
writeBytes(c = text[i++]);
} while(c);
timeoutSet((barcodeHeight + 40) * dotPrintTime);
prevByte = '\n';
feed(2);
}
// === Character commands ===
#define INVERSE_MASK (1 << 1)
#define UPDOWN_MASK (1 << 2)
#define BOLD_MASK (1 << 3)
#define DOUBLE_HEIGHT_MASK (1 << 4)
#define DOUBLE_WIDTH_MASK (1 << 5)
#define STRIKE_MASK (1 << 6)
void Adafruit_Thermal::setPrintMode(uint8_t mask) {
printMode |= mask;
writePrintMode();
charHeight = (printMode & DOUBLE_HEIGHT_MASK) ? 48 : 24;
maxColumn = (printMode & DOUBLE_WIDTH_MASK ) ? 16 : 32;
}
void Adafruit_Thermal::unsetPrintMode(uint8_t mask) {
printMode &= ~mask;
writePrintMode();
charHeight = (printMode & DOUBLE_HEIGHT_MASK) ? 48 : 24;
maxColumn = (printMode & DOUBLE_WIDTH_MASK ) ? 16 : 32;
}
void Adafruit_Thermal::writePrintMode() {
writeBytes(27, 33, printMode);
}
void Adafruit_Thermal::normal() {
printMode = 0;
writePrintMode();
}
void Adafruit_Thermal::inverseOn(){
setPrintMode(INVERSE_MASK);
}
void Adafruit_Thermal::inverseOff(){
unsetPrintMode(INVERSE_MASK);
}
void Adafruit_Thermal::upsideDownOn(){
setPrintMode(UPDOWN_MASK);
}
void Adafruit_Thermal::upsideDownOff(){
unsetPrintMode(UPDOWN_MASK);
}
void Adafruit_Thermal::doubleHeightOn(){
setPrintMode(DOUBLE_HEIGHT_MASK);
}
void Adafruit_Thermal::doubleHeightOff(){
unsetPrintMode(DOUBLE_HEIGHT_MASK);
}
void Adafruit_Thermal::doubleWidthOn(){
setPrintMode(DOUBLE_WIDTH_MASK);
}
void Adafruit_Thermal::doubleWidthOff(){
unsetPrintMode(DOUBLE_WIDTH_MASK);
}
void Adafruit_Thermal::strikeOn(){
setPrintMode(STRIKE_MASK);
}
void Adafruit_Thermal::strikeOff(){
unsetPrintMode(STRIKE_MASK);
}
void Adafruit_Thermal::boldOn(){
setPrintMode(BOLD_MASK);
}
void Adafruit_Thermal::boldOff(){
unsetPrintMode(BOLD_MASK);
}
void Adafruit_Thermal::justify(char value){
uint8_t pos = 0;
switch(toupper(value)) {
case 'L': pos = 0; break;
case 'C': pos = 1; break;
case 'R': pos = 2; break;
}
writeBytes(0x1B, 0x61, pos);
}
// Feeds by the specified number of lines
void Adafruit_Thermal::feed(uint8_t x){
// The datasheet claims sending bytes 27, 100, <x> will work, but
// it feeds much more than that. So it's done manually:
while(x--) write('\n');
}
// Feeds by the specified number of individual pixel rows
void Adafruit_Thermal::feedRows(uint8_t rows) {
writeBytes(27, 74, rows);
timeoutSet(rows * dotFeedTime);
}
void Adafruit_Thermal::flush() {
writeBytes(12);
}
void Adafruit_Thermal::setSize(char value){
uint8_t size;
switch(toupper(value)) {
default: // Small: standard width and height
size = 0x00;
charHeight = 24;
maxColumn = 32;
break;
case 'M': // Medium: double height
size = 0x01;
charHeight = 48;
maxColumn = 32;
break;
case 'L': // Large: double width and height
size = 0x11;
charHeight = 48;
maxColumn = 16;
break;
}
writeBytes(29, 33, size, 10);
prevByte = '\n'; // Setting the size adds a linefeed
}
// Underlines of different weights can be produced:
// 0 - no underline
// 1 - normal underline
// 2 - thick underline
void Adafruit_Thermal::underlineOn(uint8_t weight) {
writeBytes(27, 45, weight);
}
void Adafruit_Thermal::underlineOff() {
underlineOn(0);
}
void Adafruit_Thermal::printBitmap(
int w, int h, const uint8_t *bitmap, bool fromProgMem) {
int rowBytes, rowBytesClipped, rowStart, chunkHeight, x, y, i;
rowBytes = (w + 7) / 8; // Round up to next byte boundary
rowBytesClipped = (rowBytes >= 48) ? 48 : rowBytes; // 384 pixels max width
for(i=rowStart=0; rowStart < h; rowStart += 255) {
// Issue up to 255 rows at a time:
chunkHeight = h - rowStart;
if(chunkHeight > 255) chunkHeight = 255;
writeBytes(18, 42, chunkHeight, rowBytesClipped);
for(y=0; y < chunkHeight; y++) {
for(x=0; x < rowBytesClipped; x++, i++) {
PRINTER_PRINT(fromProgMem ? pgm_read_byte(bitmap + i) : *(bitmap+i));
}
i += rowBytes - rowBytesClipped;
}
timeoutSet(chunkHeight * dotPrintTime);
}
prevByte = '\n';
}
void Adafruit_Thermal::printBitmap(int w, int h, Stream *stream) {
int rowBytes, rowBytesClipped, rowStart, chunkHeight, x, y, i, c;
rowBytes = (w + 7) / 8; // Round up to next byte boundary
rowBytesClipped = (rowBytes >= 48) ? 48 : rowBytes; // 384 pixels max width
for(rowStart=0; rowStart < h; rowStart += 255) {
// Issue up to 255 rows at a time:
chunkHeight = h - rowStart;
if(chunkHeight > 255) chunkHeight = 255;
writeBytes(18, 42, chunkHeight, rowBytesClipped);
for(y=0; y < chunkHeight; y++) {
for(x=0; x < rowBytesClipped; x++) {
while((c = stream->read()) < 0);
PRINTER_PRINT((uint8_t)c);
}
for(i = rowBytes - rowBytesClipped; i>0; i--) {
while((c = stream->read()) < 0);
}
}
timeoutSet(chunkHeight * dotPrintTime);
}
prevByte = '\n';
}
void Adafruit_Thermal::printBitmap(Stream *stream) {
uint8_t tmp;
uint16_t width, height;
tmp = stream->read();
width = (stream->read() << 8) + tmp;
tmp = stream->read();
height = (stream->read() << 8) + tmp;
printBitmap(width, height, stream);
}
// Take the printer offline. Print commands sent after this will be
// ignored until 'online' is called.
void Adafruit_Thermal::offline(){
writeBytes(27, 61, 0);
}
// Take the printer back online. Subsequent print commands will be obeyed.
void Adafruit_Thermal::online(){
writeBytes(27, 61, 1);
}
// Put the printer into a low-energy state immediately.
void Adafruit_Thermal::sleep() {
sleepAfter(1);
}
// Put the printer into a low-energy state after the given number
// of seconds.
void Adafruit_Thermal::sleepAfter(uint8_t seconds) {
writeBytes(27, 56, seconds);
}
// Wake the printer from a low-energy state.
void Adafruit_Thermal::wake() {
// Printer may have been idle for a very long time, during which the
// micros() counter has rolled over. To avoid shenanigans, reset the
// timeout counter before issuing the wake command.
timeoutSet(0);
writeBytes(255);
// Datasheet recomments a 50 mS delay before issuing further commands,
// but in practice this alone isn't sufficient (e.g. text size/style
// commands may still be misinterpreted on wake). A slightly longer
// delay, interspersed with ESC chars (no-ops) seems to help.
for(uint8_t i=0; i<10; i++) {
writeBytes(27);
timeoutSet(10000L);
}
}
// Tell the soft serial to listen. Needed if you are using multiple
// SoftSerial interfaces.
void Adafruit_Thermal::listen() {
#if !defined(PARTICLE)
_printer->listen();
#endif
}
// Check the status of the paper using the printers self reporting
// ability. Doesn't match the datasheet...
// Returns true for paper, false for no paper.
bool Adafruit_Thermal::hasPaper() {
writeBytes(27, 118, 0);
char stat;
// Some delay while checking.
// Could probably be done better...
for (int i = 0; i < 1000; i++) {
if (_printer->available()) {
stat = _printer->read();
break;
}
}
// Mask the 3 LSB, this seems to be the one we care about.
stat = stat & 0b000100;
// If it's set, no paper, if it's clear, we have paper.
if (stat == 0b000100) {
return false;
} else if (stat == 0b000000){
return true;
}
}
void Adafruit_Thermal::setLineHeight(int val) {
if(val < 24) val = 24;
lineSpacing = val - 24;
// The printer doesn't take into account the current text height
// when setting line height, making this more akin to inter-line
// spacing. Default line spacing is 32 (char height of 24, line
// spacing of 8).
writeBytes(27, 51, val);
}
////////////////////// not working?
void Adafruit_Thermal::tab() {
PRINTER_PRINT(9);
}
void Adafruit_Thermal::setCharSpacing(int spacing) {
writeBytes(27, 32, 0, 10);
}
/////////////////////////
#if !defined (PARTICLE)
#if ARDUINO < 100
void *operator new(size_t size_) { return malloc(size_); }
void* operator new(size_t size_,void *ptr_) { return ptr_; }
#endif
#endif
My output with this code:
