CaliPile TPiS1S138 Presence and Motion Detector - Library Port Help


#1

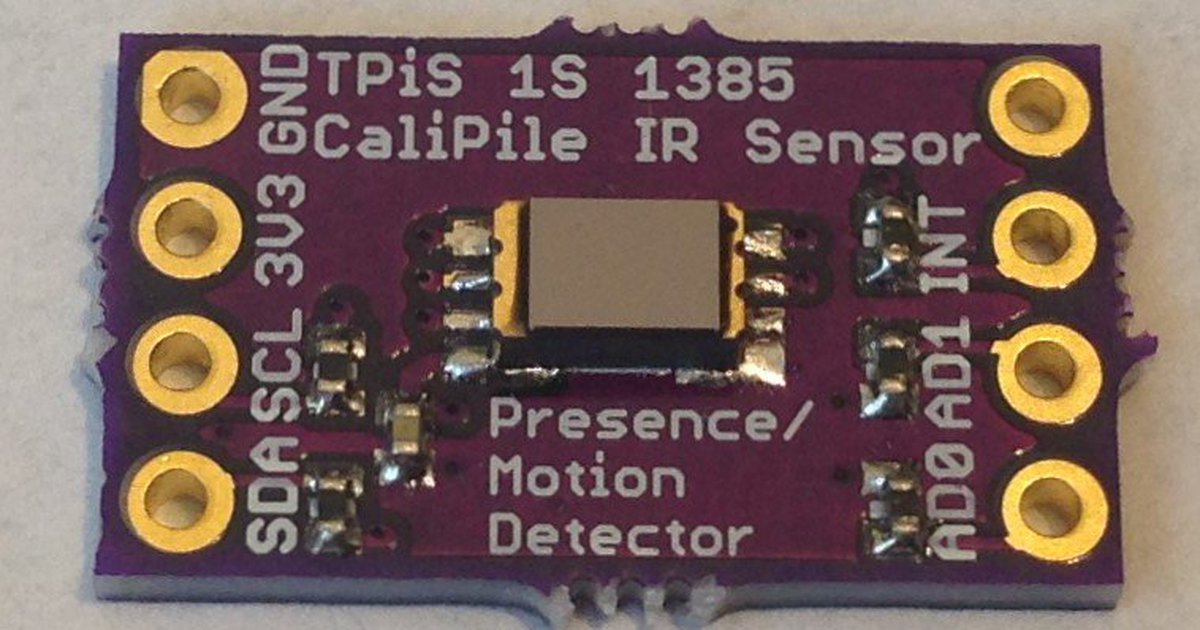

I’m trying to port a library for this 15 microamp temp and people presence sensor but I’m getting compile errors for the command wire.transfer which is not in the Particle 2 wire firmware.

Here is the library: https://github.com/kriswiner/CaliPile

@onehorse Is the creator of this library but says he has no idea what the issue is but it should be simple to figure out.

@ScruffR @peekay123 Based on a previous post about the Particle i2c firmware linked here: https://github.com/spark/firmware/blob/develop/wiring/inc/spark_wiring_i2c.h

There is no Wire.transfer command available and that is the reason for me getting this error when I try to compile this library using Particle DEV:

I’m assuming I will need to find a replacement for the Wire.Transfer Commands shown below?

Any help or advice is greatly apperciated. This sensor looks like it will be a great low power sensor for many different uses.


#2

IIRC Wire.transfer() is deprecated on the Arduino side too. It’s now replaced by Wire.write()


#3

@ScruffR I already tried that but get this new error message:

Should I be removing any of these includes?


#4

After having a quick look Wire.transfer() should do something similar as the DMA driven SPI.write() to have non-blocking I2C communication.
But this isn’t implemented for Particles (yet).

Might be worth a GitHub “issue” to propose to add this feature.

https://groups.google.com/a/arduino.cc/d/msg/developers/g5YOJFLLgWk/KLm183UGCAAJ


#5

@ScruffR Ok, Kris chimed in and added this bit of info:

This is an STM32L4-specific I2C API function. Use the generic wire API calls in the other sketch. Here, I’ll help you:

// I2C read/write functions for the CaliPile sensor

void writeByte(uint8_t address, uint8_t subAddress, uint8_t data)
{
Wire.beginTransmission(address); // Initialize the Tx buffer
Wire.write(subAddress); // Put slave register address in Tx buffer
Wire.write(data); // Put data in Tx buffer
Wire.endTransmission(); // Send the Tx buffer
}

uint8_t readByte(uint8_t address, uint8_t subAddress)
{
uint8_t data; // data will store the register data
Wire.beginTransmission(address); // Initialize the Tx buffer
Wire.write(subAddress); // Put slave register address in Tx buffer
Wire.endTransmission(false); // Send the Tx buffer, but send a restart to keep connection alive
Wire.requestFrom(address, 1); // Read one byte from slave register address
data = Wire.read(); // Fill Rx buffer with result
return data; // Return data read from slave register
}

void readBytes(uint8_t address, uint8_t subAddress, uint8_t count, uint8_t * dest)
{
Wire.beginTransmission(address); // Initialize the Tx buffer
Wire.write(subAddress); // Put slave register address in Tx buffer
Wire.endTransmission(false); // Send the Tx buffer, but send a restart to keep connection alive
uint8_t i = 0;
Wire.requestFrom(address, count); // Read bytes from slave register address
while (Wire.available()) {dest[i++] = Wire.read(); } // Put read results in the Rx buffer
}

So I switched the orginal i2c code listed below to the new code posted above:

// I2C read/write functions for the BMP280 sensors

    void CALIPILE::writeByte(uint8_t address, uint8_t subAddress, uint8_t data) {
    uint8_t temp[2];
    temp[0] = subAddress;
    temp[1] = data;
    Wire.transfer(address, &temp[0], 2, NULL, 0);
    }
    uint8_t CALIPILE::readByte(uint8_t address, uint8_t subAddress) {
    uint8_t temp[1];
    Wire.transfer(address, &subAddress, 1, &temp[0], 1);
    return temp[0];
    }
    void CALIPILE::readBytes(uint8_t address, uint8_t subAddress, uint8_t count, uint8_t * dest) {
    Wire.transfer(address, &subAddress, 1, dest, count);
    }

So now my code looks like this:

But when I compile I get this new mutiple definition error message:

Any ideas what’s causing that?


#6

One possible reason for that might be a missing guard against multi inclusion in the respective .h file.

And if these functions should be class methods, you need to prepend the class name (e.g. CaliPile::)


#7

Fixed it :slight_smile:

@ScruffR Supplied the solution and @onehorse reaffirmed the solution.

I had to change the wire functions to have the CALIPILE:: in front of them:

So the wire functions look like this now:

// I2C read/write functions for the CaliPile sensor

  void CALIPILE::writeByte(uint8_t address, uint8_t subAddress, uint8_t data)
  {
  Wire.beginTransmission(address); // Initialize the Tx buffer
  Wire.write(subAddress); // Put slave register address in Tx buffer
  Wire.write(data); // Put data in Tx buffer
  Wire.endTransmission(); // Send the Tx buffer
  }

  uint8_t CALIPILE::readByte(uint8_t address, uint8_t subAddress)
  {
  uint8_t data; // `data` will store the register data
  Wire.beginTransmission(address); // Initialize the Tx buffer
  Wire.write(subAddress); // Put slave register address in Tx buffer
  Wire.endTransmission(false); // Send the Tx buffer, but send a restart to keep connection alive
  Wire.requestFrom(address, 1); // Read one byte from slave register address
  data = Wire.read(); // Fill Rx buffer with result
  return data; // Return data read from slave register
  }

  void CALIPILE::readBytes(uint8_t address, uint8_t subAddress, uint8_t count, uint8_t * dest)
  {
  Wire.beginTransmission(address); // Initialize the Tx buffer
  Wire.write(subAddress); // Put slave register address in Tx buffer
  Wire.endTransmission(false); // Send the Tx buffer, but send a restart to keep connection alive
  uint8_t i = 0;
  Wire.requestFrom(address, count); // Read bytes from slave register address
  while (Wire.available()) {dest[i++] = Wire.read(); } // Put read results in the Rx buffer
  }

Thanks guys!


#8

@RWB
Did you get it working on a photon? I got the ino to compile on the webIDE with your changes but seemed to freeze up the photon (steady cyan not breathing)


#9

Honestly, I’ve been so busy I have not soldered up the sensor and tried it yet :frowning2:

I got it to compile on the Arduino IDE for an Arduino Uno but haven’t tried that either.

So you have the sensor also?


#10

@RWB, got it a couple days ago, in the never ending quest for ultra low power presence sensors…


#11

Yes, this looks like that Perfect sensor :smile:

So do you have an Arduino Uno to at least get the sensor up and working with? That’s usually my fallback if I can’t get something working on the Photon first few tries.


#12

@RWB, I’ll try that tomorrow on an uno


#13

I’m wiring up my sensor now to see if I get the same RED flash of death :skull_crossbones:

I can tell you that I was not sure if the proper I2C wire configuration was written in for the Photon since I had to change it from the code provided by Kris which was made to run on his custom boards, so that has to be changed correctly.


#14

@bpr Hey man I got it working enough to spit out the Serial data :smile:

Here is the modified .ino code that still needs some tweaking I’m sure but at least it’s spitting out data so we know it’s working.

/* 08/16/2017 Copyright Tlera Corporation
 *
 *  Created by Kris Winer
 *
 This sketch is to operate Excelitas' CaliPile TPiS1S1385/5029 IR Thermopile
 https://media.digikey.com/pdf/Data%20Sheets/Excelitas%20PDFs/TPiS_1S_1385.pdf

 The sketch uses default SDA/SCL pins on 20/21 of the Butterfly development board.
 The CaliPile breakout board has 4K7 pullus on SDA and SCL.

 Library may be used freely and without limit with attribution.

  */
//#include "application.h"
#include <Wire.h>

//https://www.pacer-usa.com/Assets/User/2077-CaliPile_TPiS_1S_1385_5029_27.04.2017.pdf
// CaliPile Registers
#define CALIPILE_TPOBJECT            1
#define CALIPILE_TPAMBIENT           3
#define CALIPILE_TPOBJLP1            5
#define CALIPILE_TPOBJLP2            7
#define CALIPILE_TPAMBLP3           10
#define CALIPILE_TPOBJLP2_FRZN      12
#define CALIPILE_TPPRESENCE         15
#define CALIPILE_TPMOTION           16
#define CALIPILE_TPAMB_SHOCK        17
#define CALIPILE_INTERRUPT_STATUS   18
#define CALIPILE_CHIP_STATUS        19
#define CALIPILE_SLP12              20
#define CALIPILE_SLP3               21
#define CALIPILE_TP_PRES_THLD       22
#define CALIPILE_TP_MOT_THLD        23
#define CALIPILE_TP_AMB_SHOCK_THLD  24
#define CALIPILE_INT_MASK           25
#define CALIPILE_SRC_SELECT         26
#define CALIPILE_TMR_INT            27
#define CALIPILE_TPOT_THR           28

// EEPROM Registers
#define CALIPILE_EEPROM_CONTROL     31
#define CALIPILE_EEPROM_PROTOCOL    32
#define CALIPILE_EEPROM_CHECKSUM    33
#define CALIPILE_EEPROM_LOOKUPNUM   41
#define CALIPILE_EEPROM_PTAT25      42
#define CALIPILE_EEPROM_M           44
#define CALIPILE_EEPROM_U0          46
#define CALIPILE_EEPROM_UOUT1       48
#define CALIPILE_EEPROM_TOBJ1       50
#define CALIPILE_SLAVE_ADDRESS      63

// I2C address when AD0 = AD1 = 0 (default)
#define CALIPILE_ADDRESS 0x0C

// Low-Pass time constants
#define TC_512s    0x00
#define TC_256s    0x01
#define TC_128s    0x02
#define TC_64s     0x03
#define TC_32s     0x04
#define TC_16s     0x05
#define TC_8s      0x08
#define TC_4s      0x09
#define TC_2s      0x0A
#define TC_1s      0x0B
#define TC_0_50s   0x0C
#define TC_0_25s   0x0D

// Sources
#define src_TPOBJ_TPOBJLP2         0x00
#define src_TPOBJLP1_TPOBJLP2      0x01
#define src_TPOBJ_TPOBJLP2_FRZN    0x02
#define src_TPOBJLP1_TPOBJLP2_FRZN 0x03

// Cycle times
#define cycTime_30ms  0x00
#define cycTime_60ms  0x01
#define cycTime_120ms 0x02
#define cycTime_140ms 0x03

// Define pins
#define intPin 4
#define myLed1 D7  // red led
#define myLed2 D7  // green led
#define myLed3 D7  // blue led

bool serialDebug = true, presSign = false, motSign = false;

uint8_t lookUp, rawData[3] = {0, 0, 0}, intStatus, chipStatus, temp;

// Register read variables
uint16_t PTAT25, M, U0, CHECKSUM, TPAMB, TPAMBLP3;
uint32_t TPOBJ, UOUT1, TPOBJLP1, TPOBJLP2, TPOBJLP2FRZN;
uint8_t  TOBJ1, TPPRESENCE, TPMOTION, TPAMBSHK;

// output data for comparisons
float Tamb, Tamblp3, Tobj, Tobjlp1, Tobjlp2, Tobjlp2frzn, Tpres, Tmot, Tambshk, k;

bool newInt = false;

void setup() {

  Serial.begin(115200);
  delay(4000);

  pinMode(intPin, INPUT);

  pinMode(myLed1, OUTPUT);
  digitalWrite(myLed1, HIGH);  // Start with leds off, active LOW on Butterfly
  pinMode(myLed2, OUTPUT);
  digitalWrite(myLed2, HIGH);
  pinMode(myLed3, OUTPUT);
  digitalWrite(myLed3, HIGH);

  Wire.begin(); // set master mode
  Wire.setClock(400000); // I2C frequency at 400 kHz
  delay(1000);

  I2Cscan();

  //Initiate I2C transcations with general call/reload command
  writeByte(0x00, 0x04, 0x00);
  delay(1);

  I2Cscan();


 /* Start of EEPROM operations, just have to do once *************************************************** */
 // Check EEPROM protocol number as a test of I2C communication
  writeByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_CONTROL, 0x80); // enable EEPROM read

  uint8_t c = readByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_PROTOCOL);
  Serial.print("CaliPile EEPROM protocol number is "); Serial.println(c);
  Serial.println("CaliPile EEPROM protocol number should be 3");

  uint8_t d = readByte(CALIPILE_ADDRESS, CALIPILE_SLAVE_ADDRESS);
  Serial.print("CaliPile EEPROM slave address is "); Serial.println(d);
  Serial.println("CaliPile EEPROM slave address should be 140");
  Serial.println(" ");

  // Read the EEPROM calibration constants

  lookUp = readByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_LOOKUPNUM);
  Serial.print("CaliPile LookUpNumber is "); Serial.println(lookUp);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_PTAT25, 2, &rawData[0]);
  PTAT25 = ( (uint16_t) rawData[0] << 8) | rawData[1];
  Serial.print("CaliPile PTAT25 is "); Serial.println(PTAT25);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_M, 2, &rawData[0]);
  M = ( (uint16_t) rawData[0] << 8) | rawData[1];
  M /= 100;
  Serial.print("CaliPile M is "); Serial.println(M);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_U0, 2, &rawData[0]);
  U0 = ( (uint16_t) rawData[0] << 8) | rawData[1];
  U0 += 32768;
  Serial.print("CaliPile U0 is "); Serial.println(U0);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_UOUT1, 2, &rawData[0]);
  UOUT1 = ( (uint16_t) rawData[0] << 8) | rawData[1];
  UOUT1 *= 2;
  Serial.print("CaliPile UOUT1 is "); Serial.println(UOUT1);

  TOBJ1 = readByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_TOBJ1);
  Serial.print("CaliPile TOBJ1 is "); Serial.println(TOBJ1);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_CHECKSUM, 2, &rawData[0]);
  CHECKSUM = ( (uint16_t) rawData[0] << 8) | rawData[1];
  Serial.print("CaliPile CHECKSUM is supposed to be "); Serial.println(CHECKSUM);

  // Calculate the checksum
  uint16_t sum = 0;
  for(int ii = 35; ii < 64; ii++)
  {
   sum += readByte(CALIPILE_ADDRESS, ii);
  }
  Serial.print("CaliPile CHECKSUM is "); Serial.println(sum + c);

  writeByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_CONTROL, 0x00); // disable EEPROM read
  /* End of EEPROM operations, just have to do once *************************************************** */


  // Initialize the sensor for motion and presence detection
  // Tthr (bit 4), presence (bit(3), motion (bit 2), amb shock (bit 1), timer (bit 0) interrupts allowed
  writeByte(CALIPILE_ADDRESS, CALIPILE_INT_MASK, 0x1C);
  // time constant for LP1 (bits 0 - 3) and LP2 (bits 4 - 7)
  writeByte(CALIPILE_ADDRESS, CALIPILE_SLP12, TC_8s << 4 | TC_1s);
  // select cycle time (bits 0 - 1) for motion detection, source (bits) 2 - 3) for presence detection
  temp = readByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT);
  writeByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT, temp | src_TPOBJLP1_TPOBJLP2 << 2 | cycTime_30ms);
  // select presence and motion thresholds
  writeByte(CALIPILE_ADDRESS, CALIPILE_TP_PRES_THLD, 0x22); // set at 50 counts
  writeByte(CALIPILE_ADDRESS, CALIPILE_TP_MOT_THLD, 0x0A); // set at 10 counts

  // specify the over temperature interrupt threshold (2 bytes)
  writeByte(CALIPILE_ADDRESS, CALIPILE_TPOT_THR, 0x83); // choose 67,072 counts as threshold
  writeByte(CALIPILE_ADDRESS, (CALIPILE_TPOT_THR + 1), 0x00);
  temp = readByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT);
  writeByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT, temp | 0x10); // interrupt on exceeding threshold
  // Verify threshole set
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOT_THR, 2, &rawData[0]);
  uint16_t TPOTTHR = ((uint16_t) rawData[0] << 8) | rawData[1];
  Serial.print("Overtemp threshold = "); Serial.println(TPOTTHR * 2);

  // Construct needed calibration constants (just need to calculate once)
  k = ( (float) (UOUT1 - U0) )/(powf((float)(TOBJ1 + 273.15f), 3.8f) - powf(25.0f + 273.15f, 3.8f) );

  attachInterrupt(intPin, myinthandler, FALLING);  // define interrupt for INT pin output of CaliPile

  // read interrupt status register(s) to unlatch interrupt before entering main loop
  intStatus  = readByte(CALIPILE_ADDRESS, CALIPILE_INTERRUPT_STATUS);
  Serial.print("Int status = "); Serial.println(intStatus, HEX);

  /* end of setup */
}


void loop() {

   if(newInt == true)  // handle interrupt on receipt
   {
    newInt = false;

    // read interrupt status register(s) to clear interrupt
    intStatus  = readByte(CALIPILE_ADDRESS, CALIPILE_INTERRUPT_STATUS);

    if(intStatus & 0x08)
    {
      Serial.println("Presence detected!");
      digitalWrite(myLed2, LOW); delay(10); digitalWrite(myLed2, HIGH);  // flash green led
      if(intStatus & 0x80) presSign = true;
      else presSign = false;
    }

    if(intStatus & 0x04)
    {
      Serial.println("Motion detected!");
      digitalWrite(myLed3, LOW); delay(10); digitalWrite(myLed3, HIGH); // flash blue led
      if(intStatus & 0x40) motSign = true;
      else motSign = false;
      }

    if(intStatus & 0x10)
    {
      Serial.println("Temp threshold exceeded!");
    }

    /* end of interrupt handling */
    }


  // read the ambient temperature
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPAMBIENT, 2, &rawData[0]);
  TPAMB = ( (uint16_t)(rawData[0] & 0x7F) << 8) | rawData[1] ;

  Tamb = 298.15f + ((float)TPAMB - (float)PTAT25) * (1.0f/(float) M);

  // read the object temperature
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJECT, 3, &rawData[0]);
  TPOBJ = ( (uint32_t) ( (uint32_t)rawData[0] << 24) | ( (uint32_t)rawData[1] << 16) | (rawData[2] & 0x80) << 8) >> 15;

  float temp0 = powf(Tamb, 3.8f);
  float temp1 = ( ((float) TPOBJ) - ((float) U0)  ) / k ;
  Tobj = powf( (temp0 + temp1), 0.2631578947f );

  // Read the time-integrated registers

  // 20-bit wide, divide by 8 to compare with TPOBJ
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJLP1, 3, &rawData[0]);
  TPOBJLP1 = ( ((uint32_t) rawData[0] << 16) | ((uint32_t) rawData[1] << 8) | (rawData[2] & 0xF0) ) >> 4;
  TPOBJLP1 /= 8;

  // 20-bit wide, divide by 8 to compare with TPOBJ
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJLP2, 3, &rawData[0]);
  TPOBJLP2 = ((uint32_t) (rawData[0] & 0x0F) << 16) | ((uint32_t) rawData[1] << 8) | rawData[2] ;
  TPOBJLP2 /= 8;

  // 16-bit wide, divide by 2 to compare with TPAMB
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPAMBLP3, 2, &rawData[0]);
  TPAMBLP3 = ((uint16_t) rawData[0] << 8) | rawData[1];
  TPAMBLP3 /= 2;

  // 24-bit wide, divide by 128 to compare with TPOBJ
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJLP2_FRZN, 3, &rawData[0]);
  TPOBJLP2FRZN = ((uint32_t) rawData[0] << 16) | ((uint32_t) rawData[1] << 8) | rawData[2];
  TPOBJLP2FRZN /= 128;

  TPPRESENCE = readByte(CALIPILE_ADDRESS, CALIPILE_TPPRESENCE);
  TPMOTION   = readByte(CALIPILE_ADDRESS, CALIPILE_TPMOTION);
  TPAMBSHK   = readByte(CALIPILE_ADDRESS, CALIPILE_TPAMB_SHOCK);

  if(serialDebug)
  {
    Serial.print("Tambient = "); Serial.print(Tamb, 2); Serial.println(" K");
    Serial.print("TPAMP = "); Serial.println(TPAMB);
    Serial.print("TAMBLP3 = "); Serial.println(TPAMBLP3);
    Serial.println(" ");

    Serial.print("Tobj = "); Serial.print(Tobj, 2); Serial.println(" K");
    Serial.print("TPOBJ = "); Serial.println(TPOBJ);
    Serial.print("TPOBJLP1 = "); Serial.println(TPOBJLP1);
    Serial.print("TPOBJLP2 = "); Serial.println(TPOBJLP2);
    Serial.print("TPOBJLP2FRZN = "); Serial.println(TPOBJLP2FRZN);
    Serial.println(" ");

     if(presSign)
    {
      Serial.print("TPPRESENCE = ");   Serial.println(-1 * TPPRESENCE);
    }
    else
    {
       Serial.print("TPPRESENCE = ");   Serial.println(TPPRESENCE);
    }

    if(motSign)
    {
      Serial.print("TPMOTION = ");   Serial.println(-1 * TPMOTION);
    }
    else
    {
       Serial.print("TPMOTION = ");   Serial.println(TPMOTION);
    }

    Serial.print("TAMBSHK = ");    Serial.println(TPAMBSHK);
    Serial.println(" ");
  }

// Output for serial plotter
//  Serial.print((Tamb - 273.15));  Serial.print("  "); Serial.print((Tobj - 273.15)); Serial.println("  ");

   Serial.print((TPAMB)); Serial.print("  "); Serial.print((TPAMBLP3)); Serial.println("  ");

//   Serial.print((TPOBJ)); Serial.print("  "); Serial.print((TPOBJLP1)); Serial.print("  ");
//   Serial.print((TPOBJLP2)); Serial.print("  "); Serial.print((TPOBJLP2FRZN)); Serial.println("  ");

  digitalWrite(myLed1, LOW); delay(10); digitalWrite(myLed1, HIGH);  delay(500);

  /* end of main loop */
}


/* Useful functions */
void myinthandler()
{
  newInt = true;
}


// I2C scan function
void I2Cscan()
{
// scan for i2c devices
  byte error, address;
  int nDevices;

  Serial.println("Scanning...");

  nDevices = 0;
  for(address = 1; address < 127; address++ )
  {
    // The i2c_scanner uses the return value of
    // the Write.endTransmission to see if
    // a device did acknowledge to the address.
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0)
    {
      Serial.print("I2C device found at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.print(address,HEX);
      Serial.println("  !");

      nDevices++;
    }
    else if (error==4)
    {
      Serial.print("Unknown error at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("No I2C devices found\n");
  else
    Serial.println("done\n");

}


// I2C read/write functions for the CaliPile sensor

  void writeByte(uint8_t address, uint8_t subAddress, uint8_t data)
{
  Wire.beginTransmission(address);  // Initialize the Tx buffer
  Wire.write(subAddress);           // Put slave register address in Tx buffer
  Wire.write(data);                 // Put data in Tx buffer
  Wire.endTransmission();           // Send the Tx buffer
}

  uint8_t readByte(uint8_t address, uint8_t subAddress)
{
  uint8_t data; // `data` will store the register data
  Wire.beginTransmission(address);         // Initialize the Tx buffer
  Wire.write(subAddress);                  // Put slave register address in Tx buffer
  Wire.endTransmission(false);             // Send the Tx buffer, but send a restart to keep connection alive
  Wire.requestFrom(address, 1);            // Read one byte from slave register address
  data = Wire.read();                      // Fill Rx buffer with result
  return data;                             // Return data read from slave register
}

  void readBytes(uint8_t address, uint8_t subAddress, uint8_t count, uint8_t * dest)
{
  Wire.beginTransmission(address);   // Initialize the Tx buffer
  Wire.write(subAddress);            // Put slave register address in Tx buffer
  Wire.endTransmission(false);       // Send the Tx buffer, but send a restart to keep connection alive
  uint8_t i = 0;
  Wire.requestFrom(address, count);  // Read bytes from slave register address
  while (Wire.available()) {dest[i++] = Wire.read(); } // Put read results in the Rx buffer
}

#15

@BPR After playing with the sensor for a few I edited the example code down to only spit out serial and flash the D7 LED 2 or 3 times if there is a Motion, Presence, or Thermal Shock event.

So far it’s actually working as expected :slight_smile:

You just need to set the thresholds that trigger these Motion & Presence interrupts.

@peekay123 Exactly what we have been looking for :smile: a 15uA Motion Sensor with easy to define interrupt setpoints.

Thanks to @ScruffR for helping to get the library ported to Particle quickly :thumbsup:

/* 08/16/2017 Copyright Tlera Corporation
 *
 *  Created by Kris Winer
 *
 This sketch is to operate Excelitas' CaliPile TPiS1S1385/5029 IR Thermopile
 https://media.digikey.com/pdf/Data%20Sheets/Excelitas%20PDFs/TPiS_1S_1385.pdf

 The sketch uses default SDA/SCL pins on 20/21 of the Butterfly development board.
 The CaliPile breakout board has 4K7 pullus on SDA and SCL.

 Library may be used freely and without limit with attribution.

  */
//#include "application.h"
#include <Wire.h>

//https://www.pacer-usa.com/Assets/User/2077-CaliPile_TPiS_1S_1385_5029_27.04.2017.pdf
// CaliPile Registers
#define CALIPILE_TPOBJECT            1
#define CALIPILE_TPAMBIENT           3
#define CALIPILE_TPOBJLP1            5
#define CALIPILE_TPOBJLP2            7
#define CALIPILE_TPAMBLP3           10
#define CALIPILE_TPOBJLP2_FRZN      12
#define CALIPILE_TPPRESENCE         15
#define CALIPILE_TPMOTION           16
#define CALIPILE_TPAMB_SHOCK        17
#define CALIPILE_INTERRUPT_STATUS   18
#define CALIPILE_CHIP_STATUS        19
#define CALIPILE_SLP12              20
#define CALIPILE_SLP3               21
#define CALIPILE_TP_PRES_THLD       22
#define CALIPILE_TP_MOT_THLD        23
#define CALIPILE_TP_AMB_SHOCK_THLD  24
#define CALIPILE_INT_MASK           25
#define CALIPILE_SRC_SELECT         26
#define CALIPILE_TMR_INT            27
#define CALIPILE_TPOT_THR           28

// EEPROM Registers
#define CALIPILE_EEPROM_CONTROL     31
#define CALIPILE_EEPROM_PROTOCOL    32
#define CALIPILE_EEPROM_CHECKSUM    33
#define CALIPILE_EEPROM_LOOKUPNUM   41
#define CALIPILE_EEPROM_PTAT25      42
#define CALIPILE_EEPROM_M           44
#define CALIPILE_EEPROM_U0          46
#define CALIPILE_EEPROM_UOUT1       48
#define CALIPILE_EEPROM_TOBJ1       50
#define CALIPILE_SLAVE_ADDRESS      63

// I2C address when AD0 = AD1 = 0 (default)
#define CALIPILE_ADDRESS 0x0C

// Low-Pass time constants
#define TC_512s    0x00
#define TC_256s    0x01
#define TC_128s    0x02
#define TC_64s     0x03
#define TC_32s     0x04
#define TC_16s     0x05
#define TC_8s      0x08
#define TC_4s      0x09
#define TC_2s      0x0A
#define TC_1s      0x0B
#define TC_0_50s   0x0C
#define TC_0_25s   0x0D

// Sources
#define src_TPOBJ_TPOBJLP2         0x00
#define src_TPOBJLP1_TPOBJLP2      0x01
#define src_TPOBJ_TPOBJLP2_FRZN    0x02
#define src_TPOBJLP1_TPOBJLP2_FRZN 0x03

// Cycle times
#define cycTime_30ms  0x00
#define cycTime_60ms  0x01
#define cycTime_120ms 0x02
#define cycTime_140ms 0x03

// Define pins
#define intPin 4
#define myLed1 D7  // red led
#define myLed2 D7  // green led
#define myLed3 D7  // blue led

bool serialDebug = false, presSign = false, motSign = false;

uint8_t lookUp, rawData[3] = {0, 0, 0}, intStatus, chipStatus, temp;

// Register read variables
uint16_t PTAT25, M, U0, CHECKSUM, TPAMB, TPAMBLP3;
uint32_t TPOBJ, UOUT1, TPOBJLP1, TPOBJLP2, TPOBJLP2FRZN;
uint8_t  TOBJ1, TPPRESENCE, TPMOTION, TPAMBSHK;

// output data for comparisons
float Tamb, Tamblp3, Tobj, Tobjlp1, Tobjlp2, Tobjlp2frzn, Tpres, Tmot, Tambshk, k;

bool newInt = false;

void setup() {

  Serial.begin(115200);
  delay(4000);

  pinMode(intPin, INPUT);

  pinMode(myLed1, OUTPUT);
  digitalWrite(myLed1, LOW);  // Start with leds off, active LOW on Butterfly
  pinMode(myLed2, OUTPUT);
  digitalWrite(myLed2, LOW);
  pinMode(myLed3, OUTPUT);
  digitalWrite(myLed3, LOW);

  Wire.begin(); // set master mode
  Wire.setClock(400000); // I2C frequency at 400 kHz
  delay(1000);

  I2Cscan();

  //Initiate I2C transcations with general call/reload command
  writeByte(0x00, 0x04, 0x00);
  delay(1);

  I2Cscan();


 /* Start of EEPROM operations, just have to do once *************************************************** */
 // Check EEPROM protocol number as a test of I2C communication
  writeByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_CONTROL, 0x80); // enable EEPROM read

  uint8_t c = readByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_PROTOCOL);
  Serial.print("CaliPile EEPROM protocol number is "); Serial.println(c);
  Serial.println("CaliPile EEPROM protocol number should be 3");

  uint8_t d = readByte(CALIPILE_ADDRESS, CALIPILE_SLAVE_ADDRESS);
  Serial.print("CaliPile EEPROM slave address is "); Serial.println(d);
  Serial.println("CaliPile EEPROM slave address should be 140");
  Serial.println(" ");

  // Read the EEPROM calibration constants

  lookUp = readByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_LOOKUPNUM);
  Serial.print("CaliPile LookUpNumber is "); Serial.println(lookUp);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_PTAT25, 2, &rawData[0]);
  PTAT25 = ( (uint16_t) rawData[0] << 8) | rawData[1];
  Serial.print("CaliPile PTAT25 is "); Serial.println(PTAT25);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_M, 2, &rawData[0]);
  M = ( (uint16_t) rawData[0] << 8) | rawData[1];
  M /= 100;
  Serial.print("CaliPile M is "); Serial.println(M);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_U0, 2, &rawData[0]);
  U0 = ( (uint16_t) rawData[0] << 8) | rawData[1];
  U0 += 32768;
  Serial.print("CaliPile U0 is "); Serial.println(U0);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_UOUT1, 2, &rawData[0]);
  UOUT1 = ( (uint16_t) rawData[0] << 8) | rawData[1];
  UOUT1 *= 2;
  Serial.print("CaliPile UOUT1 is "); Serial.println(UOUT1);

  TOBJ1 = readByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_TOBJ1);
  Serial.print("CaliPile TOBJ1 is "); Serial.println(TOBJ1);

  readBytes(CALIPILE_ADDRESS, CALIPILE_EEPROM_CHECKSUM, 2, &rawData[0]);
  CHECKSUM = ( (uint16_t) rawData[0] << 8) | rawData[1];
  Serial.print("CaliPile CHECKSUM is supposed to be "); Serial.println(CHECKSUM);

  // Calculate the checksum
  uint16_t sum = 0;
  for(int ii = 35; ii < 64; ii++)
  {
   sum += readByte(CALIPILE_ADDRESS, ii);
  }
  Serial.print("CaliPile CHECKSUM is "); Serial.println(sum + c);

  writeByte(CALIPILE_ADDRESS, CALIPILE_EEPROM_CONTROL, 0x00); // disable EEPROM read
  /* End of EEPROM operations, just have to do once *************************************************** */


  // Initialize the sensor for motion and presence detection
  // Tthr (bit 4), presence (bit(3), motion (bit 2), amb shock (bit 1), timer (bit 0) interrupts allowed
  writeByte(CALIPILE_ADDRESS, CALIPILE_INT_MASK, 0x1C);
  // time constant for LP1 (bits 0 - 3) and LP2 (bits 4 - 7)
  writeByte(CALIPILE_ADDRESS, CALIPILE_SLP12, TC_8s << 4 | TC_1s);
  // select cycle time (bits 0 - 1) for motion detection, source (bits) 2 - 3) for presence detection
  temp = readByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT);
  writeByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT, temp | src_TPOBJLP1_TPOBJLP2 << 2 | cycTime_30ms);
  // select presence and motion thresholds
  writeByte(CALIPILE_ADDRESS, CALIPILE_TP_PRES_THLD, 0x22); // set at 50 counts
  writeByte(CALIPILE_ADDRESS, CALIPILE_TP_MOT_THLD, 0x0A); // set at 10 counts

  // specify the over temperature interrupt threshold (2 bytes)
  writeByte(CALIPILE_ADDRESS, CALIPILE_TPOT_THR, 0x83); // choose 67,072 counts as threshold
  writeByte(CALIPILE_ADDRESS, (CALIPILE_TPOT_THR + 1), 0x00);
  temp = readByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT);
  writeByte(CALIPILE_ADDRESS, CALIPILE_SRC_SELECT, temp | 0x10); // interrupt on exceeding threshold
  // Verify threshole set
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOT_THR, 2, &rawData[0]);
  uint16_t TPOTTHR = ((uint16_t) rawData[0] << 8) | rawData[1];
  Serial.print("Overtemp threshold = "); Serial.println(TPOTTHR * 2);

  // Construct needed calibration constants (just need to calculate once)
  k = ( (float) (UOUT1 - U0) )/(powf((float)(TOBJ1 + 273.15f), 3.8f) - powf(25.0f + 273.15f, 3.8f) );

  attachInterrupt(intPin, myinthandler, FALLING);  // define interrupt for INT pin output of CaliPile

  // read interrupt status register(s) to unlatch interrupt before entering main loop
  intStatus  = readByte(CALIPILE_ADDRESS, CALIPILE_INTERRUPT_STATUS);
  Serial.print("Int status = "); Serial.println(intStatus, HEX);

  /* end of setup */
}


void loop() {

   if(newInt == true)  // handle interrupt on receipt
   {
    newInt = false;

    // read interrupt status register(s) to clear interrupt
    intStatus  = readByte(CALIPILE_ADDRESS, CALIPILE_INTERRUPT_STATUS);

    if(intStatus & 0x08)
    {
      Serial.println("Presence detected!");
      digitalWrite(myLed2, HIGH); delay(500); digitalWrite(myLed2, LOW); delay(500); digitalWrite(myLed2, HIGH); delay(500); digitalWrite(myLed2, LOW);  // flash D7 led 2 times to indicate Presense Detected.
      if(intStatus & 0x80) presSign = true;
      else presSign = false;
    }

    if(intStatus & 0x04)
    {
      Serial.println("Motion detected!");
      digitalWrite(myLed3, HIGH); delay(250); digitalWrite(myLed3, LOW); delay(250); digitalWrite(myLed3, HIGH); delay(250); digitalWrite(myLed3, LOW); delay(250); digitalWrite(myLed3, HIGH); delay(250); digitalWrite(myLed3, LOW); // flash D7 led 3 times to indicate Motion Detected.
      if(intStatus & 0x40) motSign = true;
      else motSign = false;
      }

    if(intStatus & 0x10)
    {
      Serial.println("Temp threshold exceeded!");
    }

    /* end of interrupt handling */
    }


  // read the ambient temperature
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPAMBIENT, 2, &rawData[0]);
  TPAMB = ( (uint16_t)(rawData[0] & 0x7F) << 8) | rawData[1] ;

  Tamb = 298.15f + ((float)TPAMB - (float)PTAT25) * (1.0f/(float) M);

  // read the object temperature
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJECT, 3, &rawData[0]);
  TPOBJ = ( (uint32_t) ( (uint32_t)rawData[0] << 24) | ( (uint32_t)rawData[1] << 16) | (rawData[2] & 0x80) << 8) >> 15;

  float temp0 = powf(Tamb, 3.8f);
  float temp1 = ( ((float) TPOBJ) - ((float) U0)  ) / k ;
  Tobj = powf( (temp0 + temp1), 0.2631578947f );

  // Read the time-integrated registers

  // 20-bit wide, divide by 8 to compare with TPOBJ
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJLP1, 3, &rawData[0]);
  TPOBJLP1 = ( ((uint32_t) rawData[0] << 16) | ((uint32_t) rawData[1] << 8) | (rawData[2] & 0xF0) ) >> 4;
  TPOBJLP1 /= 8;

  // 20-bit wide, divide by 8 to compare with TPOBJ
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJLP2, 3, &rawData[0]);
  TPOBJLP2 = ((uint32_t) (rawData[0] & 0x0F) << 16) | ((uint32_t) rawData[1] << 8) | rawData[2] ;
  TPOBJLP2 /= 8;

  // 16-bit wide, divide by 2 to compare with TPAMB
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPAMBLP3, 2, &rawData[0]);
  TPAMBLP3 = ((uint16_t) rawData[0] << 8) | rawData[1];
  TPAMBLP3 /= 2;

  // 24-bit wide, divide by 128 to compare with TPOBJ
  readBytes(CALIPILE_ADDRESS, CALIPILE_TPOBJLP2_FRZN, 3, &rawData[0]);
  TPOBJLP2FRZN = ((uint32_t) rawData[0] << 16) | ((uint32_t) rawData[1] << 8) | rawData[2];
  TPOBJLP2FRZN /= 128;

  TPPRESENCE = readByte(CALIPILE_ADDRESS, CALIPILE_TPPRESENCE);
  TPMOTION   = readByte(CALIPILE_ADDRESS, CALIPILE_TPMOTION);
  TPAMBSHK   = readByte(CALIPILE_ADDRESS, CALIPILE_TPAMB_SHOCK);

  if(serialDebug)
  {
    Serial.print("Tambient = "); Serial.print(Tamb, 2); Serial.println(" K");
    Serial.print("TPAMP = "); Serial.println(TPAMB);
    Serial.print("TAMBLP3 = "); Serial.println(TPAMBLP3);
    Serial.println(" ");

    Serial.print("Tobj = "); Serial.print(Tobj, 2); Serial.println(" K");
    Serial.print("TPOBJ = "); Serial.println(TPOBJ);
    Serial.print("TPOBJLP1 = "); Serial.println(TPOBJLP1);
    Serial.print("TPOBJLP2 = "); Serial.println(TPOBJLP2);
    Serial.print("TPOBJLP2FRZN = "); Serial.println(TPOBJLP2FRZN);
    Serial.println(" ");

     if(presSign)
    {
      Serial.print("TPPRESENCE = ");   Serial.println(-1 * TPPRESENCE);
    }
    else
    {
       Serial.print("TPPRESENCE = ");   Serial.println(TPPRESENCE);
    }

    if(motSign)
    {
      Serial.print("TPMOTION = ");   Serial.println(-1 * TPMOTION);
    }
    else
    {
       Serial.print("TPMOTION = ");   Serial.println(TPMOTION);
    }

    Serial.print("TAMBSHK = ");    Serial.println(TPAMBSHK);
    Serial.println(" ");
  }

// Output for serial plotter
//  Serial.print((Tamb - 273.15));  Serial.print("  "); Serial.print((Tobj - 273.15)); Serial.println("  ");

//   Serial.print((TPAMB)); Serial.print("  "); Serial.print((TPAMBLP3)); Serial.println("  ");

//   Serial.print((TPOBJ)); Serial.print("  "); Serial.print((TPOBJLP1)); Serial.print("  ");
//   Serial.print((TPOBJLP2)); Serial.print("  "); Serial.print((TPOBJLP2FRZN)); Serial.println("  ");

//  digitalWrite(myLed1, LOW); delay(10); digitalWrite(myLed1, HIGH);  delay(500);

delay(250);
  /* end of main loop */
}


/* Useful functions */
void myinthandler()
{
  newInt = true;
}


// I2C scan function
void I2Cscan()
{
// scan for i2c devices
  byte error, address;
  int nDevices;

  Serial.println("Scanning...");

  nDevices = 0;
  for(address = 1; address < 127; address++ )
  {
    // The i2c_scanner uses the return value of
    // the Write.endTransmission to see if
    // a device did acknowledge to the address.
    Wire.beginTransmission(address);
    error = Wire.endTransmission();

    if (error == 0)
    {
      Serial.print("I2C device found at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.print(address,HEX);
      Serial.println("  !");

      nDevices++;
    }
    else if (error==4)
    {
      Serial.print("Unknown error at address 0x");
      if (address<16)
        Serial.print("0");
      Serial.println(address,HEX);
    }
  }
  if (nDevices == 0)
    Serial.println("No I2C devices found\n");
  else
    Serial.println("done\n");

}


// I2C read/write functions for the CaliPile sensor

  void writeByte(uint8_t address, uint8_t subAddress, uint8_t data)
{
  Wire.beginTransmission(address);  // Initialize the Tx buffer
  Wire.write(subAddress);           // Put slave register address in Tx buffer
  Wire.write(data);                 // Put data in Tx buffer
  Wire.endTransmission();           // Send the Tx buffer
}

  uint8_t readByte(uint8_t address, uint8_t subAddress)
{
  uint8_t data; // `data` will store the register data
  Wire.beginTransmission(address);         // Initialize the Tx buffer
  Wire.write(subAddress);                  // Put slave register address in Tx buffer
  Wire.endTransmission(false);             // Send the Tx buffer, but send a restart to keep connection alive
  Wire.requestFrom(address, 1);            // Read one byte from slave register address
  data = Wire.read();                      // Fill Rx buffer with result
  return data;                             // Return data read from slave register
}

  void readBytes(uint8_t address, uint8_t subAddress, uint8_t count, uint8_t * dest)
{
  Wire.beginTransmission(address);   // Initialize the Tx buffer
  Wire.write(subAddress);            // Put slave register address in Tx buffer
  Wire.endTransmission(false);       // Send the Tx buffer, but send a restart to keep connection alive
  uint8_t i = 0;
  Wire.requestFrom(address, count);  // Read bytes from slave register address
  while (Wire.available()) {dest[i++] = Wire.read(); } // Put read results in the Rx buffer
}

#16

@RWB Very nice! Thanks. Won’t have time to try it all out til tomorrow or so but thanks!


#17

Wow, this is a sensitive little module! If I even just exhale toward the back of the sensor from 18 inches away it registers motion. The temperature report appears accurate. Some work is ahead to determine how to set thresholds. I’m going backpacking for a week so I won’t be able to look into that until afterwards. Thanks again for discovering this module and getting it going. Did you verify the ultra low current demand?


#18

@BPR Here are the 2 lines that allow you to adjust the sensitivity of the trigger points.

The Motion trigger point set at 10 by default in the library so that needs to be raised for sure. It was to sensitive for me also before I changed that setting.


#19

@bpr You get a chance to play with this new sensor yet?

Curious what you thought.


#20

@RWB
only have had a few minutes to play with it so far and couldn’t determine best settings that weren’t either too sensitive or too insensitive or too unreliable. I’m hoping to get some time in the next few days to work on it properly. The interrupt seems to work correctly though, and that’s very good
