This is my first tme asking a question here. I am trying to setup this library in my vs code project, but it is not registered in the particle workbench registry. I dont usually use vs code, but i have a project where i have to.
And sorry if this have been asked before, but i cant find a topic where u import a libary from github to vs code.
I dont want to use the project like he suggest.
Welcome to the community.

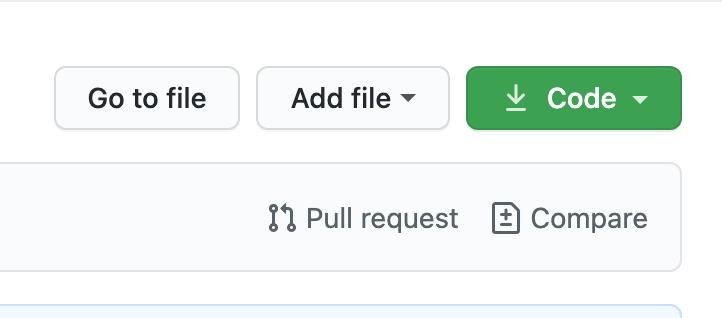

If you have github login - then if you go to the link above you can download the code as a zip file which you unpack in the directory of your project in VS Code/Particle Workbench. If you are using webIDE then I would cut’n’paste the files from github.
I have tried that, but i still get samme error.
Does it have to be inside the lib folder? or inside the project root?
Welcome to the community
This repository is not providing a library as such but only a project that can work with that display.
That's most noticeable by the fact that there is a project.properties file and not a library.properties file.
If you want to use this as a library, you'd
Particle: Create New ProjectParticle: Launch CLImkdir lib lib/Adafruit_ST7789 && cd lib/Adafruit_ST7789 && particle library create --name Adafruit_ST7789 --version 0.0.1 --author "Adafruit (ported by Jens Chr Brynildsen)"particle library add Adafruit_mfGFXAdafruit_ST7789.h & Adafruit_ST7789.cpp files in the repo into the respective files in lib/Adafruit_ST7789/srcST7789_test.ino into the examples/usage.inoNow you should be setup to use that library in your project
BTW, when you say
what error would that be?
Thank you for welcoming me
fatal error: Adafruit_mfGFX.h: No such file or directory
I run particle library add Adafruit_mfGFX?
Can you check whether there is a dependencies entry in the library.properties file for Adafruit_mfGFX?
OH sorry,
here:
name=Adafruit_ST7789
version=0.0.1
author=Adafruit (ported by Jens Chr Brynildsen)
# license=insert your choice of license here
# sentence=one sentence description of this library
# paragraph=a longer description of this library, always prepended with sentence when shown
# url=the URL of the project, like https://github.com/mygithub_user/my_repo
# repository=git repository for the project, like https://github.com/mygithub_user/my_repo.git
# architectures=a list of supported boards if this library is hardware dependent, like particle-photon,particle-electron
dependencies.Adafruit_mfGFX=1.0.4
Sorry, I just realized: Since this library was not pulled in via Particle: Library Install the dependency won’t be followed as expected.
You also need to run Particle: Library Install for Adafruit_mfGFX.
Furthermore I noticed some issue with the port as the library should be called Adafruit_ST7789 but is included as Arduino_ST7789.
You should replace all occurances of Arduino_ST7789 with Adafruit_ST7789.
After that you may also need to update some stuff about mySPISettings as this will throw some errors due to some changes in the Arduino compatibility layer for Particle.
For that you may want to replace
#include "application.h"
with
#include <Particle.h>
#include <Arduino.h>
Also defined(SPARK) wants to be changed to defined(PARTICLE).
/***************************************************
This is a library for the ST7789 IPS SPI display.
Written by Ananev Ilya.
****************************************************/
#include <Adafruit_ST7789>
#include <limits.h>
#include <SPI.h>
static const uint8_t PROGMEM
cmd2_240x240[] = { // Initialization commands for 7789 screens
7, // 6 commands in list:
ST7789_SWRESET, ST_CMD_DELAY, // 1: Software reset, no args, w/delay
150, // 150 ms delay
ST7789_SLPOUT , ST_CMD_DELAY, // 2: Out of sleep mode, no args, w/delay
255, // 255 = 500 ms delay
ST7789_COLMOD , 1+ST_CMD_DELAY, // 3: Set color mode, 1 arg + delay:
0x55, // 16-bit color
10, // 10 ms delay
ST7789_MADCTL , 1, // 4: Memory access ctrl (directions), 1 arg:
0x00, // Row addr/col addr, bottom to top refresh
ST7789_INVON , ST_CMD_DELAY, // 7: Inversion ON
10,
ST7789_NORON , ST_CMD_DELAY, // 8: Normal display on, no args, w/delay
10, // 10 ms delay
ST7789_DISPON , ST_CMD_DELAY, // 9: Main screen turn on, no args, w/delay
255 }; // 255 = 500 ms delay
static const uint8_t PROGMEM
generic_st7789[] = { // Init commands for 7789 screens
9, // 9 commands in list:
ST7789_SWRESET, ST_CMD_DELAY, // 1: Software reset, no args, w/delay
150, // ~150 ms delay
ST7789_SLPOUT , ST_CMD_DELAY, // 2: Out of sleep mode, no args, w/delay
10, // 10 ms delay
ST7789_COLMOD , 1+ST_CMD_DELAY, // 3: Set color mode, 1 arg + delay:
0x55, // 16-bit color
10, // 10 ms delay
ST7789_MADCTL , 1, // 4: Mem access ctrl (directions), 1 arg:
0x08, // Row/col addr, bottom-top refresh
ST7789_CASET , 4, // 5: Column addr set, 4 args, no delay:
0x00,
0, // XSTART = 0
0,
240, // XEND = 240
ST7789_RASET , 4, // 6: Row addr set, 4 args, no delay:
0x00,
0, // YSTART = 0
320>>8,
320&0xFF, // YEND = 320
ST7789_INVON , ST_CMD_DELAY, // 7: hack
10,
ST7789_NORON , ST_CMD_DELAY, // 8: Normal display on, no args, w/delay
10, // 10 ms delay
ST7789_DISPON , ST_CMD_DELAY, // 9: Main screen turn on, no args, delay
10 }; // 10 ms delay
inline uint16_t swapcolor(uint16_t x) {
return (x << 11) | (x & 0x07E0) | (x >> 11);
}
#if defined (SPI_HAS_TRANSACTION)
static SPISettings mySPISettings;
#elif defined (__AVR__) || defined(CORE_TEENSY)
static uint8_t SPCRbackup;
static uint8_t mySPCR;
#endif
#if defined (SPI_HAS_TRANSACTION)
#define SPI_BEGIN_TRANSACTION() if (_hwSPI) SPI.beginTransaction(mySPISettings)
#define SPI_END_TRANSACTION() if (_hwSPI) SPI.endTransaction()
#else
#define SPI_BEGIN_TRANSACTION()
#define SPI_END_TRANSACTION()
#endif
// Constructor when using software SPI. All output pins are configurable.
Arduino_ST7789::Arduino_ST7789(int8_t dc, int8_t rst, int8_t sid, int8_t sclk, int8_t cs)
: Adafruit_GFX(ST7789_TFTWIDTH_240, ST7789_TFTHEIGHT_240)
{
_cs = cs;
_dc = dc;
_sid = sid;
_sclk = sclk;
_rst = rst;
_hwSPI = false;
}
// Constructor when using hardware SPI. Faster, but must use SPI pins
// specific to each board type (e.g. 11,13 for Uno, 51,52 for Mega, etc.)
Arduino_ST7789::Arduino_ST7789(int8_t dc, int8_t rst, int8_t cs)
: Adafruit_GFX(ST7789_TFTWIDTH_240, ST7789_TFTHEIGHT_240) {
_cs = cs;
_dc = dc;
_rst = rst;
_hwSPI = true;
_sid = _sclk = -1;
}
inline void Arduino_ST7789::spiwrite(uint8_t c)
{
SPI.transfer(c);
}
void Arduino_ST7789::writecommand(uint8_t c) {
SPI_BEGIN_TRANSACTION();
DC_LOW();
CS_LOW();
spiwrite(c);
CS_HIGH();
SPI_END_TRANSACTION();
}
void Arduino_ST7789::writedata(uint8_t c) {
SPI_BEGIN_TRANSACTION();
DC_HIGH();
CS_LOW();
spiwrite(c);
CS_HIGH();
SPI_END_TRANSACTION();
}
// Companion code to the above tables. Reads and issues
// a series of LCD commands stored in PROGMEM byte array.
void Arduino_ST7789::displayInit(const uint8_t *addr) {
uint8_t numCommands, numArgs;
uint16_t ms;
//<-----------------------------------------------------------------------------------------
/*
DC_HIGH();
#if defined(USE_FAST_IO)
*clkport |= clkpinmask;
#else
digitalWrite(_sclk, HIGH);
#endif
*/
//<-----------------------------------------------------------------------------------------
numCommands = pgm_read_byte(addr++); // Number of commands to follow
while(numCommands--) { // For each command...
writecommand(pgm_read_byte(addr++)); // Read, issue command
numArgs = pgm_read_byte(addr++); // Number of args to follow
ms = numArgs & ST_CMD_DELAY; // If hibit set, delay follows args
numArgs &= ~ST_CMD_DELAY; // Mask out delay bit
while(numArgs--) { // For each argument...
writedata(pgm_read_byte(addr++)); // Read, issue argument
}
if(ms) {
ms = pgm_read_byte(addr++); // Read post-command delay time (ms)
if(ms == 255) ms = 500; // If 255, delay for 500 ms
delay(ms);
}
}
}
// Initialization code common to all ST7789 displays
void Arduino_ST7789::commonInit(const uint8_t *cmdList) {
_ystart = _xstart = 0;
_colstart = _rowstart = 0; // May be overridden in init func
pinMode(_dc, OUTPUT);
if(_cs) {
pinMode(_cs, OUTPUT);
}
SPI.begin();
#if defined(USE_FAST_IO)
dcport = portOutputRegister(digitalPinToPort(_dc));
dcpinmask = digitalPinToBitMask(_dc);
if(_cs) {
csport = portOutputRegister(digitalPinToPort(_cs));
cspinmask = digitalPinToBitMask(_cs);
}
#endif
if(_hwSPI) { // Using hardware SPI
#if defined (SPI_HAS_TRANSACTION)
mySPISettings = SPISettings(30000000, MSBFIRST, SPI_MODE2);
#elif defined (__AVR__) || defined(CORE_TEENSY)
SPCRbackup = SPCR;
SPI.begin();
SPI.setClockDivider(SPI_CLOCK_DIV4);
SPI.setDataMode(SPI_MODE2);
mySPCR = SPCR; // save our preferred state
SPCR = SPCRbackup; // then restore
#elif defined (__SAM3X8E__)
SPI.begin();
SPI.setClockDivider(21); //4MHz
SPI.setDataMode(SPI_MODE2);
#endif
} else {
pinMode(_sclk, OUTPUT);
pinMode(_sid , OUTPUT);
digitalWrite(_sclk, LOW);
digitalWrite(_sid, LOW);
#if defined(USE_FAST_IO)
clkport = portOutputRegister(digitalPinToPort(_sclk));
dataport = portOutputRegister(digitalPinToPort(_sid));
clkpinmask = digitalPinToBitMask(_sclk);
datapinmask = digitalPinToBitMask(_sid);
#endif
}
// toggle RST low to reset; CS low so it'll listen to us
CS_LOW();
if (_rst != -1) {
pinMode(_rst, OUTPUT);
digitalWrite(_rst, HIGH);
delay(50);
digitalWrite(_rst, LOW);
delay(50);
digitalWrite(_rst, HIGH);
delay(50);
}
if(cmdList)
displayInit(cmdList);
}
void Arduino_ST7789::setRotation(uint8_t m) {
uint8_t madctl = 0;
rotation = m & 3; // can't be higher than 3
switch (rotation) {
case 0:
madctl = ST7789_MADCTL_MX | ST7789_MADCTL_MY | ST7789_MADCTL_RGB;
_xstart = _colstart;
_ystart = _rowstart;
_width = _WIDTH;
_height = _HEIGHT;
break;
case 1:
madctl = ST7789_MADCTL_MY | ST7789_MADCTL_MV | ST7789_MADCTL_RGB;
_xstart = _rowstart;
_ystart = _colstart;
_height = _WIDTH;
_width = _HEIGHT;
break;
case 2:
madctl = ST7789_MADCTL_RGB;
if ((_WIDTH == 135) && (_HEIGHT == 240)) {
_xstart = _colstart;
_ystart = _rowstart;
} else {
_xstart = 0;
_ystart = 0;
}
_width = _WIDTH;
_height = _HEIGHT;
break;
case 3:
madctl = ST7789_MADCTL_MX | ST7789_MADCTL_MV | ST7789_MADCTL_RGB;
if ((_WIDTH == 135) && (_HEIGHT == 240)) {
_xstart = _rowstart;
_ystart = _colstart;
} else {
_xstart = 0;
_ystart = 0;
}
_height = _WIDTH;
_width = _HEIGHT;
break;
}
writecommand(ST7789_MADCTL);
writedata( madctl );
}
void Arduino_ST7789::setAddrWindow(uint8_t x0, uint8_t y0, uint8_t x1,
uint8_t y1) {
uint16_t x_start = x0 + _xstart, x_end = x1 + _xstart;
uint16_t y_start = y0 + _ystart, y_end = y1 + _ystart;
writecommand(ST7789_CASET); // Column addr set
writedata(x_start >> 8);
writedata(x_start & 0xFF); // XSTART
writedata(x_end >> 8);
writedata(x_end & 0xFF); // XEND
writecommand(ST7789_RASET); // Row addr set
writedata(y_start >> 8);
writedata(y_start & 0xFF); // YSTART
writedata(y_end >> 8);
writedata(y_end & 0xFF); // YEND
writecommand(ST7789_RAMWR); // write to RAM
}
void Arduino_ST7789::pushColor(uint16_t color) {
SPI_BEGIN_TRANSACTION();
DC_HIGH();
CS_LOW();
spiwrite(color >> 8);
spiwrite(color);
CS_HIGH();
SPI_END_TRANSACTION();
}
void Arduino_ST7789::drawPixel(int16_t x, int16_t y, uint16_t color) {
if((x < 0) ||(x >= _width) || (y < 0) || (y >= _height)) return;
setAddrWindow(x,y,x+1,y+1);
SPI_BEGIN_TRANSACTION();
DC_HIGH();
CS_LOW();
spiwrite(color >> 8);
spiwrite(color);
CS_HIGH();
SPI_END_TRANSACTION();
}
void Arduino_ST7789::drawFastVLine(int16_t x, int16_t y, int16_t h,
uint16_t color) {
// Rudimentary clipping
if((x >= _width) || (y >= _height)) return;
if((y+h-1) >= _height) h = _height-y;
setAddrWindow(x, y, x, y+h-1);
uint8_t hi = color >> 8, lo = color;
SPI_BEGIN_TRANSACTION();
DC_HIGH();
CS_LOW();
while (h--) {
spiwrite(hi);
spiwrite(lo);
}
CS_HIGH();
SPI_END_TRANSACTION();
}
void Arduino_ST7789::drawFastHLine(int16_t x, int16_t y, int16_t w,
uint16_t color) {
// Rudimentary clipping
if((x >= _width) || (y >= _height)) return;
if((x+w-1) >= _width) w = _width-x;
setAddrWindow(x, y, x+w-1, y);
uint8_t hi = color >> 8, lo = color;
SPI_BEGIN_TRANSACTION();
DC_HIGH();
CS_LOW();
while (w--) {
spiwrite(hi);
spiwrite(lo);
}
CS_HIGH();
SPI_END_TRANSACTION();
}
void Arduino_ST7789::fillScreen(uint16_t color) {
fillRect(0, 0, _width, _height, color);
}
// fill a rectangle
void Arduino_ST7789::fillRect(int16_t x, int16_t y, int16_t w, int16_t h,
uint16_t color) {
// rudimentary clipping (drawChar w/big text requires this)
if((x >= _width) || (y >= _height)) return;
if((x + w - 1) >= _width) w = _width - x;
if((y + h - 1) >= _height) h = _height - y;
setAddrWindow(x, y, x+w-1, y+h-1);
uint8_t hi = color >> 8, lo = color;
SPI_BEGIN_TRANSACTION();
DC_HIGH();
CS_LOW();
for(y=h; y>0; y--) {
for(x=w; x>0; x--) {
spiwrite(hi);
spiwrite(lo);
}
}
CS_HIGH();
SPI_END_TRANSACTION();
}
// Pass 8-bit (each) R,G,B, get back 16-bit packed color
uint16_t Arduino_ST7789::Color565(uint8_t r, uint8_t g, uint8_t b) {
return ((r & 0xF8) << 8) | ((g & 0xFC) << 3) | (b >> 3);
}
void Arduino_ST7789::invertDisplay(boolean i) {
writecommand(i ? ST7789_INVON : ST7789_INVOFF);
}
/******** low level bit twiddling **********/
inline void Arduino_ST7789::CS_HIGH(void) {
pinSetFast(_cs);
}
inline void Arduino_ST7789::CS_LOW(void) {
pinResetFast(_cs);
}
inline void Arduino_ST7789::DC_HIGH(void) {
pinSetFast(_dc);
}
inline void Arduino_ST7789::DC_LOW(void) {
pinResetFast(_dc);
}
void Arduino_ST7789::init(uint16_t width, uint16_t height) {
commonInit(NULL);
if ((width == 240) && (height == 240)) { // 1.3" and 1.54" displays
_colstart = 0;
_rowstart = 80;
} else if ((width == 135) && (height == 240)) { // 1.13" display
_colstart = 53;
_rowstart = 40;
} else {
_colstart = 0;
_rowstart = 0;
}
// Next two lines are to work around a bug in the current mfGFX
// where WIDTH and HEIGHT are set to "const", preventing change
_WIDTH = width;
_HEIGHT = height;
displayInit( generic_st7789 );
setRotation(0);
}
/***************************************************
This is a library for the ST7789 IPS SPI display.
Written by Ananev Ilya. Forked from
https://github.com/lspoplove/Arduino-ST7789-Library
and adapted for Particle Photon by @jenschr to
https://github.com/jenschr/Arduino-ST7789-Library
Tested with this display from Adafruit:
https://learn.adafruit.com/adafruit-1-14-240x135-color-tft-breakout/pinouts
****************************************************/
#ifndef _ADAFRUIT_ST7789H_
#define _ADAFRUIT_ST7789H_
#if ARDUINO >= 100
#include "Arduino.h"
#include "Print.h"
#elif defined (PARTICLE)
#include <application.h>
#else
#include "WProgram.h"
#endif
#if defined(PARTICLE)
#include <Adafruit_mfGFX.h>
#else
#include <Adafruit_GFX.h>
#endif
#if defined(__AVR__) || defined(CORE_TEENSY)
#include <avr/pgmspace.h>
#define USE_FAST_IO
typedef volatile uint8_t RwReg;
#elif defined(ARDUINO_STM32_FEATHER)
typedef volatile uint32 RwReg;
#define USE_FAST_IO
#elif defined(ARDUINO_FEATHER52)
typedef volatile uint32_t RwReg;
#define USE_FAST_IO
#elif defined(ESP8266)
#include <pgmspace.h>
#elif defined(__SAM3X8E__)
#undef __FlashStringHelper::F(string_literal)
#define F(string_literal) string_literal
#include <include/pio.h>
#define PROGMEM
#define pgm_read_byte(addr) (*(const unsigned char *)(addr))
#define pgm_read_word(addr) (*(const unsigned short *)(addr))
typedef unsigned char prog_uchar;
#endif
#define ST7789_TFTWIDTH_240 240
#define ST7789_TFTHEIGHT_240 240
#define ST7789_240x240_XSTART 53
#define ST7789_240x240_YSTART 40
#define ST_CMD_DELAY 0x80 // special signifier for command lists
#define ST7789_NOP 0x00
#define ST7789_SWRESET 0x01
#define ST7789_RDDID 0x04
#define ST7789_RDDST 0x09
#define ST7789_SLPIN 0x10
#define ST7789_SLPOUT 0x11
#define ST7789_PTLON 0x12
#define ST7789_NORON 0x13
#define ST7789_INVOFF 0x20
#define ST7789_INVON 0x21
#define ST7789_DISPOFF 0x28
#define ST7789_DISPON 0x29
#define ST7789_CASET 0x2A
#define ST7789_RASET 0x2B
#define ST7789_RAMWR 0x2C
#define ST7789_RAMRD 0x2E
#define ST7789_PTLAR 0x30
#define ST7789_COLMOD 0x3A
#define ST7789_MADCTL 0x36
#define ST7789_MADCTL_MY 0x80
#define ST7789_MADCTL_MX 0x40
#define ST7789_MADCTL_MV 0x20
#define ST7789_MADCTL_ML 0x10
#define ST7789_MADCTL_RGB 0x00
#define ST7789_RDID1 0xDA
#define ST7789_RDID2 0xDB
#define ST7789_RDID3 0xDC
#define ST7789_RDID4 0xDD
// Color definitions
#define BLACK 0x0000
#define BLUE 0x001F
#define RED 0xF800
#define GREEN 0x07E0
#define CYAN 0x07FF
#define MAGENTA 0xF81F
#define YELLOW 0xFFE0
#define WHITE 0xFFFF
class Arduino_ST7789 : public Adafruit_GFX {
public:
Arduino_ST7789(int8_t DC, int8_t RST, int8_t SID, int8_t SCLK, int8_t CS = -1);
Arduino_ST7789(int8_t DC, int8_t RST, int8_t CS = -1);
void setAddrWindow(uint8_t x0, uint8_t y0, uint8_t x1, uint8_t y1),
pushColor(uint16_t color),
fillScreen(uint16_t color),
drawPixel(int16_t x, int16_t y, uint16_t color),
drawFastVLine(int16_t x, int16_t y, int16_t h, uint16_t color),
drawFastHLine(int16_t x, int16_t y, int16_t w, uint16_t color),
fillRect(int16_t x, int16_t y, int16_t w, int16_t h, uint16_t color),
setRotation(uint8_t r),
invertDisplay(boolean i),
init(uint16_t width, uint16_t height);
uint16_t Color565(uint8_t r, uint8_t g, uint8_t b);
uint16_t color565(uint8_t r, uint8_t g, uint8_t b) { return Color565(r, g, b); }
protected:
uint8_t _colstart, _rowstart, _xstart, _ystart; // some displays need this changed
void displayInit(const uint8_t *addr);
void spiwrite(uint8_t),
writecommand(uint8_t c),
writedata(uint8_t d),
commonInit(const uint8_t *cmdList);
private:
inline void CS_HIGH(void);
inline void CS_LOW(void);
inline void DC_HIGH(void);
inline void DC_LOW(void);
boolean _hwSPI;
int8_t _cs, _dc, _rst, _sid, _sclk;
int16_t _WIDTH, _HEIGHT;
#if defined(USE_FAST_IO)
volatile RwReg *dataport, *clkport, *csport, *dcport;
#if defined(__AVR__) || defined(CORE_TEENSY) // 8 bit!
uint8_t datapinmask, clkpinmask, cspinmask, dcpinmask;
#else // 32 bit!
uint32_t datapinmask, clkpinmask, cspinmask, dcpinmask;
#endif
#endif
};
#endif
You meean like this?
Sorry i tried to edit the reply rto many times. My bad But is that what you meant ?
Almost
should be
#if defined(PARTICLE)
#include <Particle.h>
#include <Arduino.h>
#elif (ARDUINO >= 100)
#include "Arduino.h"
#include "Print.h"
#else
#include "WProgram.h"
#endif
(I also reordered it a bit to "favour" the Particle declarations )
This can be dropped as it's already included via Particle.h
This is how my project looks like (and builds successfully)
Thank you so much!
I have fixed the project and its compiling now.
But i get now output to the screen.
Can the wiring be wrong?
tft.screen | photon
CS -> D4
DC -> D3
RST -> D5
SCK -> A3
MOSI -> A5
I usually use all the A pins like given in the repo, but i need them for something else now.
Did you mean to write now output?
There is an alternative SPI interface on the Photon
But for that you'd need to modify the library to use SPI1 instead of SPI and re-direct RST, DC and CS too.
e.g.
MOSI -> D2
SCK -> D4
CS -> D5
DC -> D6
RST -> D7
Ideally the library would provide a constructor that also allows to pass in the SPI interface to use in order to keep it portable. But for the time being you'd just hard code SPI1
This topic was automatically closed 182 days after the last reply. New replies are no longer allowed.
